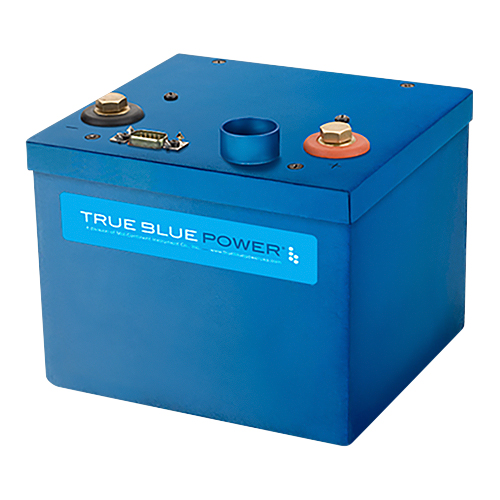

TB14 Lithium-Ion Battery | 26.4 VDC, 13 Ah
Product Description
The TB14 is designed for smaller, 28-volt fixed wing aircraft. You’ll gain faster and cooler engine starts and benefit from superior performance in extreme temperatures (-20°C to +70°C). The TB14 features built-in charge current limiting to protect your aircraft's alternator or generator without needing to install additional equipment and delivers cockpit communication via RS-232 (analog and discrete signals). This lithium-ion aircraft battery is TSO certified, lasts 8 years and features on-condition maintenance, saving you time and money.
Features
- Delivers more power per pound than any other aircraft battery
- 13 amp-hour nominal at 23°C/73.4°F
- Weighs 10 lbs. (4.6 kg)
- Advanced iron phosphate lithium-ion cell chemistry
- Higher voltage during engine start — Less wear, less maintenance and increased useful life
- 35 minutes (at 28 amps average) for complete recharge when the battery is fully discharged
- Superior high-temperature and cold-weather performance from -20°C to +70°C (-4°F to +158°F)
- Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
- Communicates battery status to the cockpit via RS-232, analog and discrete signals
- On-condition
- 8 years (average) life expectancy
- FAA TSO Certified
Specifications
Weight:
10.0 lbs. (4.6 kg)
Dimensions:
6.3 x 5.6 x 5.0 in
Capacity:
13 amp-hour nominal at 23°C/73.4°F
Charge Voltage:
28.8 VDC nominal
Output Voltage:
26.4 VDC nominal
Output Current:
100 A continuous, 850 A max
Technology:
Advanced iron phosphate lithium-ion cell chemistry
Protection:
Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting
Energy Density:
74.6 Wh/kg (118.7 Wh/liter)
Operating Temperature:
-20°C to +70°C (-4°F to +158°F)
Configuration:
2P8S; 2 parallel cells x 8 series cells
Maintenance:
On-condition
Battery Life Expectancy:
8 years (average)
Case:
Anodized aluminum, blue
Certification:
FAA TSO C179b (Class A-4B)
RTCA DO-311A
RTCA DO-160G
RTCA DO-178C DAL A
UNDOT/IATA
Product Codes
- Mfr Part No:6430014-2
- EDMO #:6430014-2
- Brand:TRUE BLUE POWER
- Category:Auxiliary Power Units & Battery Chargers
