CH93 CHRONOS Digital Clock MAX Power USB Charger | Dual USB-C Ports

MID-CONTINENT INSTRUMENTS AND AVIONICS

CALL FOR PRICING
Special order
EDMO#6420093-6
MFR#6420093-6

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

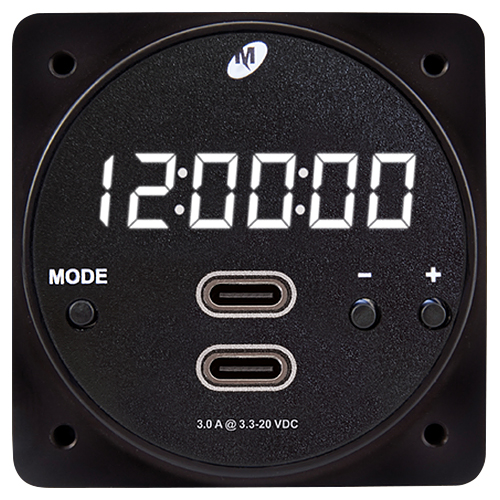

The CH93 series CHRONOS Digital Clocks are a multifunction clock which displays volts, temperature, time, countdown time, and stopwatch, and also comes available with multiple USB charging options. The CH93 installs in to a 2-1/4 inch avionics panel cutout and power is drawn from the aircraft main bus to power the unit. The white, seven-segment LED clock can displays several modes: local time, universal time, flight timers, elapsed and countdown timers and optionally, bus voltage and up to two temperature inputs. The daylight readable display features two methods of brightness controls: automatically using the internal photocell or manually with external dimming bus voltage. An internal battery maintains clock time and flight timer memory when the aircraft is not in use.

This CH93 digital clock (EDMO# 6420093-6) features dual USB-C charging ports, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, Secondary Air Temp.

Features

  • Six-digit, seven-segment LED clock
  • Eight modes: Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT and Secondary Air Temp
  • Clock settings include 12- or 24-hour mode and seconds On or Off
  • Manual and automatic lighting control with programmable dimming curves
  • Internal, field-replaceable battery maintains time and Flight Timer memory without aircraft power
  • Compact, 2-inch size fits standard panel cutout
  • 45 watts/3 amps USB power per port
  • Compatible with Apple, Android and other USB devices
  • Protects itself and the charging device from short circuit, power surges and over-current potential
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

Weight:
5.0 oz

Dimensions:
2.39 x 2.39 x 1.22 in

Power Input:
12–32 VDC; 107 W maximum
7.6 A @ 14 VDC / 3.8 amps @ 28 VDC

USB Power Output:
5–20 VDC (variable); 45 W, 3.0 A per port

Clock Accuracy:
±15 seconds per month

Display Modes:
Local time, UTC/Zulu time, flight timer, countdown timer, stopwatch, volts, OAT and secondary air temperature

Altitude:
55,000 ft

Temperature:
-40°C to 70°C (operating)

USB Interface:
USB-A & USB-C PD

Mounting:
Rear-panel mounted, (4) #6 screws

Connector Kit:
MCIA P/N 9018178-1

USB Interface:
Dual USB-C PD

Case:
Anodized aluminum black

Certification:
FAA TSO certified to C71
EASA ETSO certified to C71
RTCA DO-160G qualified

Product Codes

  • Mfr Part No:6420093-6
  • EDMO #:6420093-6
  • Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
  • ECCN:9A991
  • SCHEDULE B CODE:9104.00.0000
  • SCHEDULE B CODE:9104.00.0000
