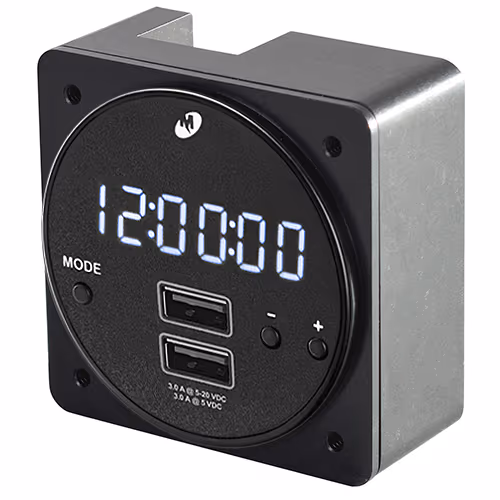

CH93 CHRONOS Digital Clock High Power USB Charger | Dual USB-A ports

MID-CONTINENT INSTRUMENTS AND AVIONICS

CALL FOR PRICING
In Stock
EDMO#6420093-4
MFR#6420093-4

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The CH93 series CHRONOS Digital Clocks are a multifunction clock which displays volts, temperature, time, countdown time, and stopwatch, and also comes available with multiple USB charging options. The CH93 installs in to a 2-1/4 inch avionics panel cutout and power is drawn from the aircraft main bus to power the unit. The white, seven-segment LED clock can displays several modes: local time, universal time, flight timers, elapsed and countdown timers and optionally, bus voltage and up to two temperature inputs. The daylight readable display features two methods of brightness controls: automatically using the internal photocell or manually with external dimming bus voltage. An internal battery maintains clock time and flight timer memory when the aircraft is not in use.

This CH93 digital clock (EDMO# 6420093-4) features Dual USB-A charging ports, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, Secondary Air Temp.

Features

  • Six-digit, seven-segment LED clock
  • Eight modes: local time, UTC/Zulu time, flight timer, countdown timer, stopwatch, volts, OAT and secondary air temperature
  • Clock settings include 12- or 24-hour mode and seconds On or Off
  • External lighting control and built-in photocell for automatic dimming
  • Internal, field-replaceable battery maintains time and Flight Timer memory, without aircraft power
  • Compact, 2-inch size fits standard panel cutout
  • 15 watts / 3 amps USB power
  • Compatible with Apple, Android and other USB devices
  • Protects itself and the charging device from short circuit, power surges and over-current potential
  • The USB charging ports are designed as dedicated charging ports to industry-standard protocol per USB Battery Charging 1.2 Compliance plan. Some models also comply with the higher power requirements of USB Power Delivery 2.0 and 3.0

Specifications

Weight:
5.0 oz

Dimensions:
2.39 x 2.39 x 1.22 in

Power Input:
10 – 32 VDC, 21 watts maximum
1.5A @14 VDC; 0.75A @ 28 VDC

USB Power Output:
5 – 0.25 VDC, 15 watts, 3 amp

Clock Accuracy:
±0.5 sec in 24 hours, ±3 min per year

Display Modes:
local time, UTC/Zulu time, flight timer, countdown timer, stopwatch, volts, OAT and secondary air temperature

Altitude:
55,000 ft

Temperature:
-40°C to 70°C (operating)

USB Interface:
Dual USB-A ports

Mounting:
Rear-panel mounted, (4) #6 screws

Connector Kit:
MCIA P/N 8017287

Case:
Anodized aluminum black

Certification:
FAA TSO certified to C71
EASA ETSO certified to C71
RTCA DO-160G qualified

Product Codes

  • Mfr Part No:6420093-4
  • EDMO #:6420093-4
  • Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
  • Category:Clocks & Instruments
