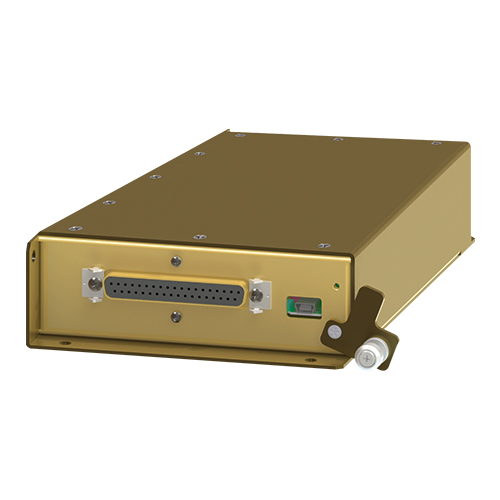

630A Audio Storage & Playback Aural Warning Generator Unit

630A Audio Storage & Playback Aural Warning Generator Unit

CANYON AEROCONNECT

Call For Pricing
In stock
EDMO # 630A-000
MFR Part # 630A-000
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 630A is an advanced audio alert & notification system. The Audio Storage and Playback Unit (ASPU) goes beyond a simple aural warning generator and provides multi-channel, digital audio playback of tones and voice messages to the cockpit and cabin. The 630A meets the requirement for increased aircraft alert capacity, and is also a replacement for 630-xxx aural warning generators.

Includes CD with 630A series Install/Ops manual and new ASPU-CS configuration software and manual.

Features

  • Increased aircraft alert capacity
  • Fully customer-programmable
  • Built-in testing capability
  • Approved to TSO-C139 requirements
  • Single part number for multiple aircraft models/specifications

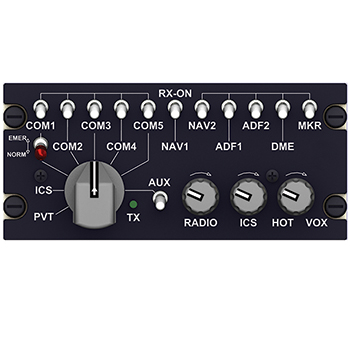

Also Purchased

Specifications

  • Max Weight:
    1.25 lbs. (0.57 kg)
  • Width:
    4.96 in. (126 mm)
  • Height:
    7.81 in. (198 mm)
  • Length:*
    1.68 in. (43 mm) *Not including cable exit and bend radius
  • Noise:
    <-50 dB (-70 dB typical)
  • Total Harmonic Distortion (THD+N):
    Frequency Response: Audio I/O: Flat-to-within 3 dB from 300 MHz to 6 kHz Audio Outputs - Playback Messages: Flat-to-within 3 dB from 300 Hz to 15 kHz
  • Crosstalk:
    -80dB (typical)
  • Operating Temperature:
    -55°C to +70°C
  • Operating Altitude:
    55,000 feet (16,764 m)

Product Codes

  • Mfr Part No
    630A-000
  • ECCN
    7A994
  • PROAPP
    PT2204NM/PQ2204NM
  • SCHEDULE B CODE
    8518.40.2000
