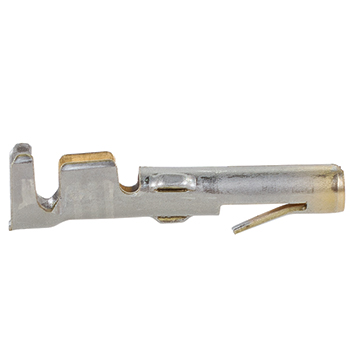

Commercial Mate-N-Lok Connector Socket | 24–18 AWG, Gold-Plated Brass

SOCKET/Female, 250V, MATE-N-LOK series. Brass material. For use with 24-18 gauge wire. ROHS compliant.

TE CONNECTIVITY

Call For Pricing
In stock
EDMO # 60617-5
MFR Part # 60617-5
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

This Commercial Mate-N-Lok connector socket (EDMO# 60617-5) has a gold-plated brass material, fits wire gauges from 24 AWG to 18 AWG, and mates with contact pin 60618-5.

Features

  • Gold-Plated, Brass material
  • Accepts 24 AWG to 18 AWG gauge wire
  • Mates with contact pin 60618-5
  • RoHS compliant

Also Purchased

Specifications

  • Length:
    0.695 in
  • Wire Gauge Diameter:
    0.100 in
  • Insolation Diameter:
    0.100 in, max.
  • Contact Gender:
    Socket (female)
  • Contact Material:
    Gold-Plated, brass
  • Current Rating:
    13 A
  • Voltage Rating:
    250 V

Related Products

Product Codes

  • Mfr Part No
    60617-5
  • CSA
    LR7189
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.90.4000
  • UL
    E28476
