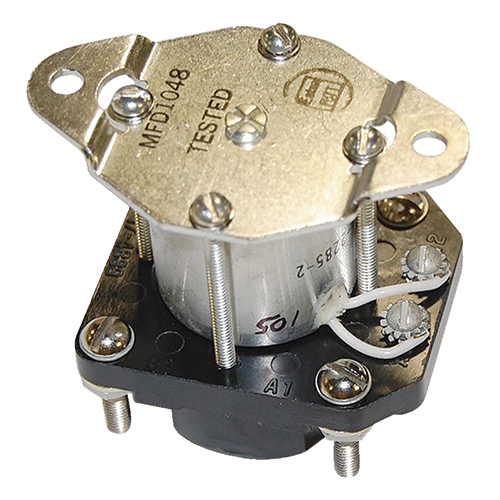

MS24178-D1 Relay | 55A

Product Description

Continuous duty, gasketed, powered relay with non-latching solenoid design. Operates at 28 VDC, 55 amp current.

Specifications

• Weight:
  340.91 g (0.75 lb)
• Dimensions:
  2.922 x 2.844 x 2.031 in (74.22 x 72.24 x 51.59 mm) 2.385 in (60.58 mm), mounting
• Coil:
  0,138-32 UNC-2B
• Ampere Ratings:
  55 amp
• Altitude:
  50,000 ft
• Shock:
  25 g’s
• Acceleration:
  10 g’s
• Vibration Limits:
  5 to 10 Hz: 0.8 in DA 19 to 55 Hz: 0.6 in DA 55 to 2,000 Hz: 2 g’s
• Temperature Range:
  -55°C to 71°C
• Insulation Resistance:
  100 MΩ, minimum initally 50 MΩ, minimum after tests
• Dielectric:
  1,250 VAC, minimum initially 1,000 VAC, minimum after tests
• Electrical Operations:
  50,000 cycles
• Mechanical Operations:
  100,000 cycles at 25% rated resistive load
• Minimum Current:
  10% of rated DC resistive load
• Intermittent Duty Ratings:
  % of rated resistive
• Time On in Minutes:
  Cooling time is required between successive over load applications

Product Codes

• Mfr Part No
  MS24178
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.41.0020
