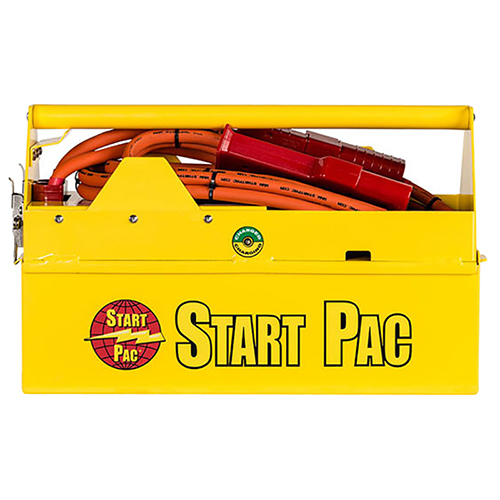

Mobile Aircraft Starting Unit | 28VDC Output
Product Description

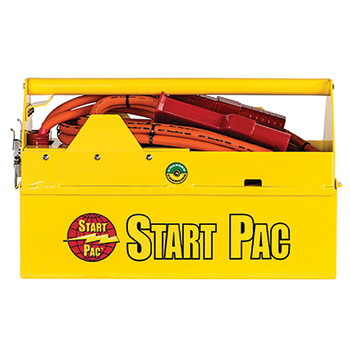

Start Pac's mobile starting unit provides fast engine starting for both turbine and piston aircraft engines. This unit includes built-in charger, power plugs and cables. It supplies a 28 VDC current for starting the largest electrically started turbine or piston engines – including the Garrent TPE331.
Start Pac patented technology provides faster and cooler engine starts than most manufacture aircraft batteries which extends engine life and lowers operating costs. Quick-change batteries can be changed in the field in less then a minute without requiring the use of any tools. In addition, certain aircraft will allow onboard recharging of a GPU unit without an AC power source — making this portable engine starting unit virtually maintenance-free.
This mobile aircraft engine starting unit (EDMO# 6028QC) provides a 28 VDC output, 2,300 peak current amps, and built-in float-type charger.
Features
- Compact & Lightweight
- Portable enough to use as a carry-on Start-Pac whenever power is needed
- All-in-one power supply with included universal smart float-type charger, power plug, and 7-foot aircraft cables
- Integrated LED charge indicator
- Cold resistant, valve regulated high amperage output lead acid batteries
- Eliminates sulfating problems provides lower maintenance
- Sealed, non-hazardous battery pack for use in any position
- Recyclable, nontoxic and will not leak
- Low VOC, powder-coated, aluminum case protects the unit from weather
- Patented quick change design offers quick and simple battery replacements
Specifications
Weight:
77 lb (35 kg)
Dimensions:
19.2 x 7.5 x 11.5 in ( 48.8 x 19 x 29.2 cm)
Battery Type:
lead acid
Voltage:
28 VDC
Peak Current:
2,300 amp
Capacity:
28 Ah @ 10 amp rate
Charger Type:
built-in float type, 90–240 VAC (50/60 Hz)
Charging Time:
30 min. to 4 hr
Product Codes
- Mfr Part No:6028 QC
- EDMO #:6028QC
- Brand:START PAC
- Category:Ground Support Equipment
