EDMO

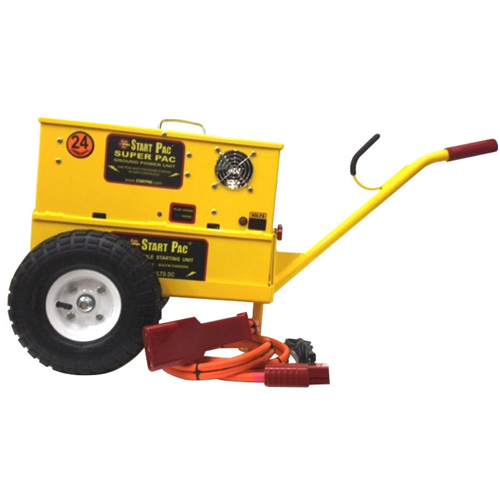

Super Pac Aircraft Starting Unit | 28 VDC Output

START PAC

CALL FOR PRICING
Available To Order
EDMO#6028QC-S
MFR#6028QC SUPER PAC

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The Start Pac Super Pac aircraft starting unit provides superior starts on all electrically-started turbine engines and 50 amps of continuous power for powering up aircraft systems. Super Pac units are equipped a QC trolly for providing simpler transport to and from the aircraft.

Start Pac patented technology provides faster and cooler engine starts than most manufacture aircraft batteries which extends engine life and lowers operating costs. Quick-change batteries can be changed in the field in less then a minute without requiring the use of any tools. In addition, certain aircraft will allow onboard recharging of a GPU unit without an AC power source — making this portable engine starting unit virtually maintenance-free.

Features

  • Compact & Lightweight
  • Portable enough to use as a carry-on Start-Pac whenever power is needed
  • No duty cycle for clean continuous power
  • All-in-one power supply with included universal smart float-type charger, power plug, and 7-foot aircraft cables
  • Integrated LED charge indicator
  • Cold resistant, valve regulated high amperage output lead acid batteries
  • Eliminates sulfating problems provides lower maintenance
  • Sealed, non-hazardous battery pack for use in any position
  • Recyclable, nontoxic and will not leak
  • Low VOC, powder-coated, aluminum case protects the unit from weather
  • Patented quick change design offers quick and simple battery replacements

Specifications

Weight:
86 lb (39 kg)

Dimension:
19.2 x 7.5 x 14 in (49 x 19 x 36 cm)

Battery Type:
Lead acid

Voltage:
28 VDC

Peak Current:
2,300 A

Capacity:
28 amp-hour @ 10A rate

Charger Type:
Built-in

Recharge Time:
1 – 4 hr

Current Output:
50A max, continuous

DC Voltage Output:
28.5 VDC

AC Voltage Input:
110 VAC or 220 VAC

AC Current Input:
14A @ 110 VAC
7A @ 220 VAC

Phase:
Single

Force-Air Cooling:
Yes

Circuit Protection:
Over-current, over-voltage, over-temperature

Product Codes

  • Mfr Part No:6028QC SUPER PAC
  • EDMO #:6028QC-S
  • Brand:START PAC
  • Category:Ground Support Equipment
