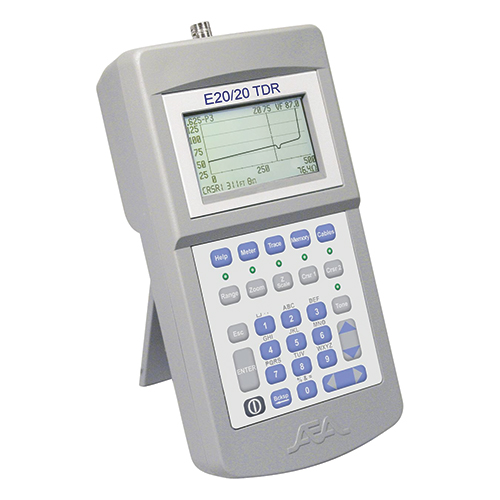

E20/20B Network TDR with VDV/RF Option
Product Description
The Avionics TDR is designed specifically for testing and fault locations on aircraft wiring. The Step TDR Technology is ideal for troubleshooting all types of coax, twisted pairs, single wires in a harness, and aircraft power cables.Whether testing a new harness for complete connections or aging aircraft wiring, this TDR will provide the most accurate trace of the cable’s impedance over length and detect even the smallest faults. The kit includes ETDR PC Vision™ software for trace documentation and new avionics training presentations.
This E20/20B Network TDR with VDV/RF Option (EDMO# 6021-5053) includes an RJ45 to Telco Clips (2 pair) test lead, a BNC to Alligator Clips test lead, TDR PC vision software, app notes, training PPT, an operating manual and literature backup on CD, a printed basic guide, an AC Adapter (100-240 VAC, 50/60 Hz), a DC vehicle adapter, a belt case, a soft carrying case, a USB cable, an internal battery recharger, and 8 AA NiMH batteries installed.
Features
This E20/20B Network TDR with VDV/RF Option includes:
- E20/20 TDR unit
- Belt Case
- AC Adapter
- USB Cable
- RJ45-to-RJ45 Cat 5E 6ft Cable
- BNC-to-Alligator Clips Test Lead
- Basic Guide
- Quick Start Guide
Features:
- EMI shielded interior protects against RF interference and emissions
- Includes a dark grey ABS plastic case and enhanced keypad
- Redesigned belt case with an accessories pouch and protection for connectors
- Coax and twisted pair testing using same TDR (all types of coax, OSP, twisted pairs [CAT 2 to CAT 6A], and single wires in bundles or harnesses)
- Accurate and clearer trace indication of faults with MicroFault locating for finding even small coax kinks
- Has data transfer abilities: saves, uploads, and emails traces and can upload, download, and customize cable lists
- Saved traces are also saved setups for recall
- Shows reverse ingress or cable signal
- TDR frequency does not interfere with cable signal
- Isolate drop or pairs quickly using Tone function
- Setup Wizard makes training interactive
- The unit weighs only 2.2 lb and can be worn on a belt
Specifications
Weight:
2.2 lb (1 Kg) with batteries and belt case
Dimensions:
8.5 x 4.3 x 2.25 in (216 x 109 x 57 mm)
Range:
0 - 20,000 ft (5,000 m) @ VF = 0.999 c
Display Resolutions:
1 in (2.54 cm) 0 - 5,000 ft 5 ft 4 in (1.63 m) 5,000 - 10,000 ft or 0.1% of span distance with Accuracy of <0.2% + 1 in (2.54 cm) + VoP uncertainty
Measurement Speed:
1-2 updates/second depending on range
Impedance Range:
1-1K Ohms with Resolution: 0.1 Ohms and Accuracy: <2% @ 40< Z <120
Impedance Plotting Scales:
0 - 20, 50, 100, 200, 500 and 1,000 Ohms
Impedance Formats:
Ohms
Output Power:
0.4 volts peak-to-peak
Power Requirements:
90 - 240 VAC, 50-60 Hz for AC operation or battery charging
Velocity of Propagation:
0.20 - 0.99c with Resolution 0.003c
Dead Zone:
None on any range
Cursors:
Two with differential readings
Memory:
32 traces with name, date and time
Display:
Qtr VGA, Backlit LCD 279 x 156 pixels
Communications:
USB-2/Serial
Internal Power:
8xAA Alkaline, NiMH or NiCd batteries
External Power:
15 VDC @ 800 mA
Environmental:
Splash and dust resistant
Drop Resistance:
MilStd 810F Transit Drop, 48 in (122 cm)
Product Codes
- Mfr Part No:6021-5053
- EDMO #:6021-5053
- Brand:AEA TECHNOLOGY
- Category:Wire & Cable Testers
