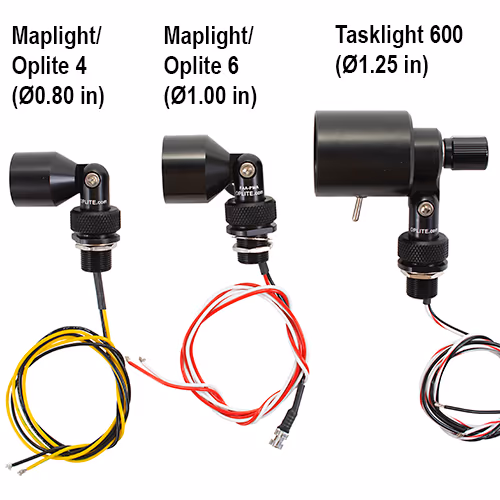

Tasklight 600 LED Cockpit Maplight | White, 12V-24V, Panel Mount
Product Description
The Tasklight 600 maplight installs easily into the panel and features a built-in dimmer switch and on/off switch. This maplight is available in a single color mode or dual color mode: all red, all white, all blue, or all green; as well as red & white, blue & white, or green & white. These task lights are manufactured and tested to ISO 9001:2008 and AS9001C for quality and traceability.
This Tasklight 600 (EDMO# 600-TH-1-W) has a white light color, and has a lamp head diameter of 1.25 inch.
Features
- Built-in dimmer & On/Off switch
- Compatible with 12-volt and 24-volt systems
- Machined from high quality CNC machined, 6061T6 aluminum
- Black anodized
- Dual color models: red & white, blue & white, green & white
- Single color models: red, white, blue, and Green
- Available in either thru panel mounr or a six-inch gooseneck
Specifications
Installed Height:
2.53 in (at 90° position)
Lamp Head:
1.25 x 2.40 in
Thread:
15/32-32 x 0.45 in
Lamp Head:
1.25 x 2.40 in
Thread:
15/32-32 x 0.45 in
Color:
white
Input Voltage:
12 - 24 volt
Mounting Hole:
15/32 in thru hole
Approvals:
engineered in adherence to AS9100 certification
Product Codes
- Mfr Part No:TASK600-TH-1-W
- EDMO #:600-TH-1-W
- Brand:OPLITE
- Category:Aircraft Lighting
