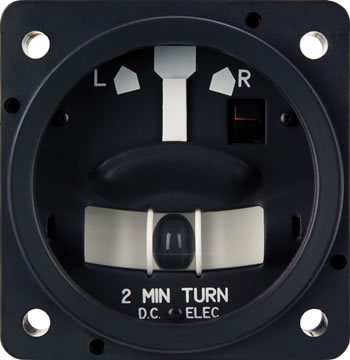

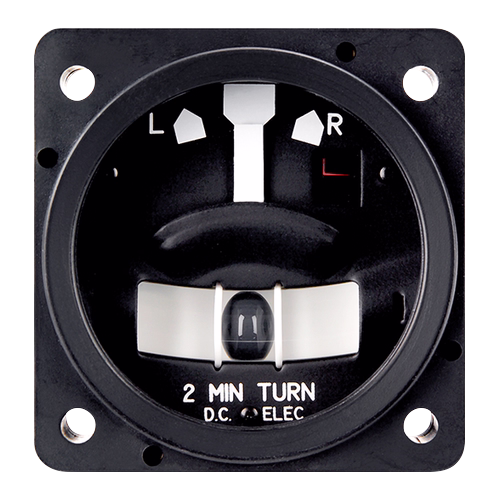

Turn And Slip Indicator | 2in, 28V Lighting
Product Description
The 5550 Series Turn and Slip Indicator displays the rate of turn and the slip or skid of the turn. The indicator contains and Internal 400 Hz AC brushless gyro spin motor with solid-state inverter.
Version (EDMO# 55508340N5) is a 2 inch 28V lighted turn and slip indicator.
Features
- Compact 2 1/4-inch size saves valuable panel space
- Power warning indicator
- Internal lighting available 5, 14, or 28 volts
- Commercial and military qualified
- FAA TSO C3b certified
Specifications
Weight:
1.5 lbs
Dimensions:
2.4 x 2.4 x 6.1 inches
Voltage Input:
28 VDC
Current Input:
0.4 Amp
Temperature:
–30°C to +50°C (–22°F to +122°F)
Altitude:
–100 to +35,000 feet
Humidity:
0 to 95% at 32°C
Vibration:
.02 in. dbl. ampl., 1.5g @ 5 to 50 Hz
Certification:
TSO C3b
Motor Speed Variation:
3% max
Mounting:
Front or rear panel
Connector:
3-, 4- or 5-pin AN type male
Product Codes
- Mfr Part No:5550-8340N5L
- EDMO #:55508340N5
- Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
- Category:Clocks & Instruments
