Integra 406 AP-H/ER-N ELT | Includes Auxiliary Antenna
Product Description
The Integra 406 ELT offers an efficient option for installing or retrofitting a 406 MHz ELT with GPS capabilities in individual or fleet aircraft. The Integra ELT transmits distress signals and location data via a 406 MHz signal to the COSPAS-SARSAT network of satellites in conjunction with a homing signal on 121.5 MHz. The Integras GPS capabilities make it possible for the ELT to send exact GPS coordinates for a crash site location — further narrowing the search area to 0.03 square miles while lowering response times to as little as 30 minutes.

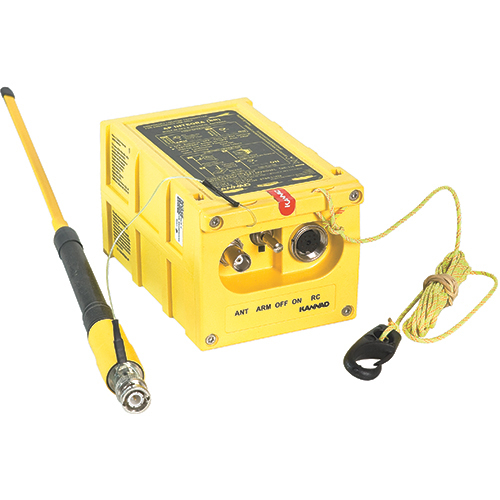

This Integra AP-H/ER-N ELT (EDMO# 54501-03) includes the Integra 406 ELT transmitter, battery, and an auxiliary antenna.
Features
- Automatic portable, helicopter version, extended temperature range (AP-H/ER-N) emergency locator transmitter with ARINC e-NAV interface
- Operates on 406 MHz and 121.5 MHz frequencies
- Integrated internal 406 MHz backup antenna
- Lightweight and compact size
- Operating temperature as low as -40C for 24 hours on 406 MHz and over 48 hours on 121.5 MHz
- Does not require an external power supply
- Remote control panel offers optional 2-wire or 3-wire installations
- Universal mounting bracket provides easy retrofitting
- Weight: 1.873 lb (850 g), including batteries
- Dimensions: 6.89 x 3.90 x 3.40 in (175 x 99 x 88.4 mm)
- Approvals: COSPAS-SARSAT, RTCA DO-160, TSO-C126a, C142a and ETSO 2C91a, 2C126, C142a
Specifications
Weight:
1.873 lb (850 g), including batteries
Dimensions:
6.89 x 3.90 x 3.40 in (175 x 99 x 88.4 mm)
Frequency:
406.037 MHz
121.5 MHz
Color:
Yellow
Material:
Molded plastic
Functions:
Integrated 406 MHz antenna
Built-in GPS (antenna/receiver)
Battery:
6-year replacement interval
Accessories are powered by ELT battery
Interfaces:
DIN12 socket for remote control panel and programming dongle
BNC antenna connector
Controls and Indicators:
Arm/Off/On switch
Bright red LED
Internal buzzer
Outside buzzer option
Operating Lifetime:
-20°C: 24 hr, (class 2 ELT), min.
-40°C: 24 hr, (clase 1 ELT), min.
Approvals:
COSPAS-SARSAT Class 2 (-20°c to +55°c) or class 1 (-40°C to +55°C) ER type
RTCA DO-160/EUROCAE ED14 Environmental conditions
TSO-C126a, C142a and ETSO 2C91a, 2C126, C142a
Product Codes
- Mfr Part No:S1854501-03
- EDMO #:54501-03
- Brand:MCMURDO
- Category:ELTs & Accessories
