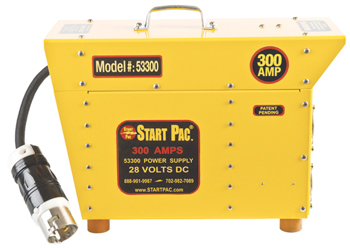

53300 Start Pac Aircraft Power Supply | 28.5VDC Output, 300A Current, 220V Input
Product Description
The Start Pac model 53300 is designed to power up 24-volt aircraft systems and provides a continuous current up to 300-amps. The 28.5 volt output is designed to simulate the aircraft's power when operating on its own.
Start Pac aircraft power supplies have been specifically designed for avionics maintenance to power up various functions such as inverters, avionics, and GPS programming/ equipment. Technicians can preform aircraft maintenance without using the aircraft's onboard battery thus preventing unnecessary wear and conserving aircraft power for startup purposes. The low VOC powder coating protects the Start Pac from wear and weather conditions.
This Start Pac aircraft power supply (EDMO# 53300) operations on 220-volt AC power and has a 300A current output.
Features
- Compact, lightweight portable aircraft power supply
- No duty cycle – provides clean continuous power
- Maximum current output: 28.5-volts @ 300-amps
- Resistant aluminum case with low VOC, durable powder-coat finish
- Designed for heavy-duty usage
- Overload protection
Specifications
Weight:
42 lb (19 kg)
Dimension:
20 x 8 x 13 in (51 x 20 x 33 cm)
Continuous Current Power:
300A, max.
DC Voltage Output:
28.5 VDC
AC Voltage Input:
180 VAC — 240 VAC
AC Current Input:
40A @ 220 VAC, at maximum DC power output
Phase:
single
Forced Air-Cooling:
yes
Circuit Protection:
over-current, over-voltage, over-temperature
Product Codes
- Mfr Part No:53300-24/28V
- EDMO #:53300
- Brand:START PAC
- Category:Ground Support Equipment
