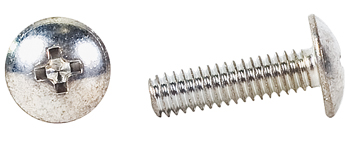

AN526-632R6 Truss Head Machine Screw | 6-32 Thread, 3/8-inch Length, 0.321-inch Phillips Head

Product Description

This AN526 series truss head machine screw (EDMO# 526632R6) has 6-32 threads, a 0.321-inch Phillips head, and is 3/8-inch in length. It is also made of stainless steel.

Specifications

• Thread Class:
  2a
• Thread Direction:
  Right-hand
• Thread Length:
  0.375 in
• Fastener Length:
  0.375 in
• Head Style:
  Pan Head
• Head Diameter:
  0.303 – 0.321 in
• Internal Drive Style:
  Cross recess type 1
• Nominal Thread Diameter:
  0.138 in
• Thread Quantity Per Inch:
  32
• Minimum Tensile Strength:
  55000 lb/sq. in
• Screw Material:
  Steel, Cadmium Plated
• Thread Series Designator:
  UNC

Product Codes

• Mfr Part No
  AN526-632R6
• ECCN
  EAR99
• SCHEDULE B CODE
  7408.29.0000
