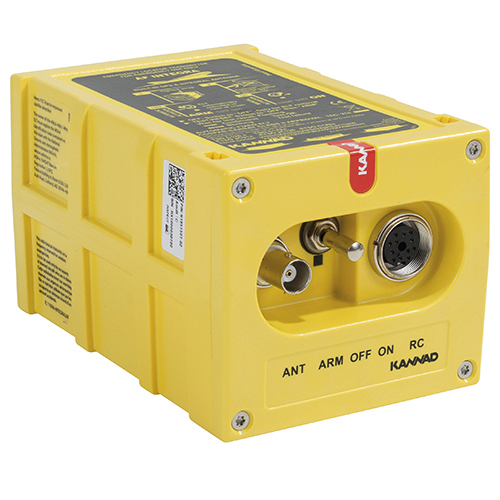

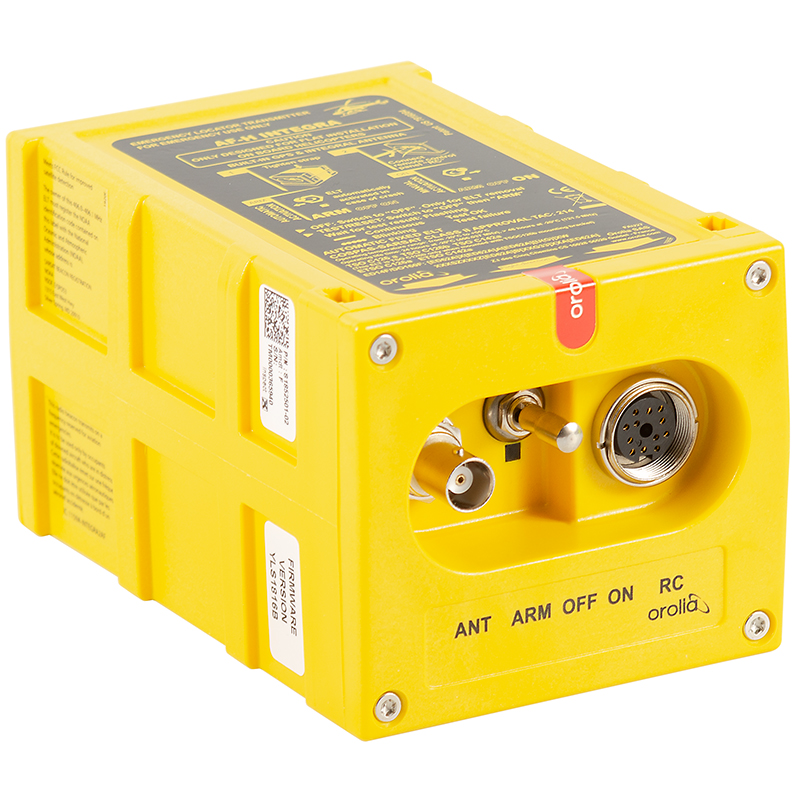

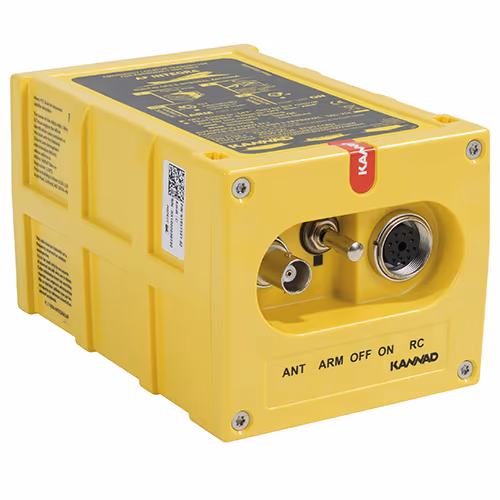

Integra AF-H/ER-N ELT

Integra AF-H/ER-N ELT

MCMURDO

CALL FOR PRICING
Out of Stock
EDMO#52501-03
MFR#S1852501-03

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The Integra 406 ELT offers an efficient option for installing or retrofitting a 406 MHz ELT with GPS capabilities in individual or fleet aircraft. The Integra ELT transmits distress signals and location data via a 406 MHz signal to the COSPAS-SARSAT network of satellites in conjunction with a homing signal on 121.5 MHz. The Integra's GPS capabilities make it possible for the ELT to send exact GPS coordinates for a crash site location — further narrowing the search area to 0.03 square miles while lowering response times to as little as 30 minutes.

This Integra AF-H/ER-N ELT (EDMO# 52501-03) includes the ELT transmitter and battery

Features

  • Automatic fixed, helicopter version, extended temperature range (AF-H/ER-N) emergency locator transmitter with ARINC e-NAV interface
  • Operates on 406 MHz and 121.5 MHz frequencies
  • Integrated internal 406 MHz backup antenna
  • Lightweight and compact size
  • Operates at temperatures as low as -40C for 24 hours on 406 MHz and over 48 hours on 121.5 MHz
  • Does not require an external power supply
  • Remote control panel offers optional 2-wire or 3-wire installations
  • Universal mounting bracket provides easy retrofitting

Specifications

Weight:
1.873 lb (850 g), including batteries

Dimensions:
6.89 x 3.90 x 3.40 in (175 x 99 x 88.4 mm)

Frequency:
406.037 MHz
121.5 MHz

Color:
Yellow

Material:
Molded plastic

Functions:
Integrated 406 MHz antenna
Built-in GPS (antenna/receiver)

Battery:
6-year replacement interval
Accessories are powered by ELT battery

Interfaces:
DIN12 socket for remote control panel and programming dongle
BNC antenna connector

Controls and Indicators:
Arm/Off/On switch
Bright red LED
Internal buzzer
Outside buzzer option

Operating Lifetime:
-20°C: 24 hr, (class 2 ELT), min.
-40°C: 24 hr, (clase 1 ELT), min.

Approvals:
COSPAS-SARSAT Class 2 (-20°c to +55°c) or class 1 (-40°C to +55°C) ER type
RTCA DO-160/EUROCAE ED14 Environmental conditions
TSO-C126a, C142a and ETSO 2C91a, 2C126, C142a

Product Codes

  • Mfr Part No:S1852501-03
  • EDMO #:52501-03
  • Brand:MCMURDO
  • Category:ELTs & Accessories
