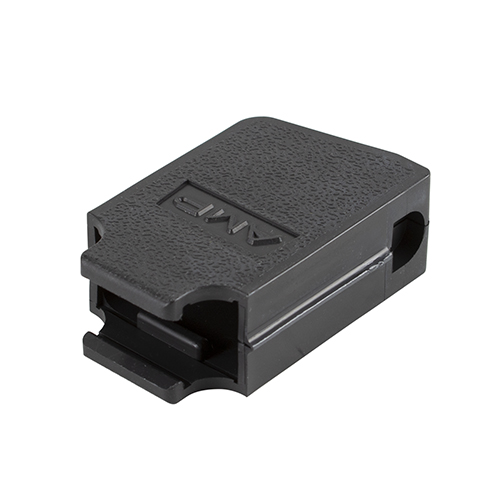

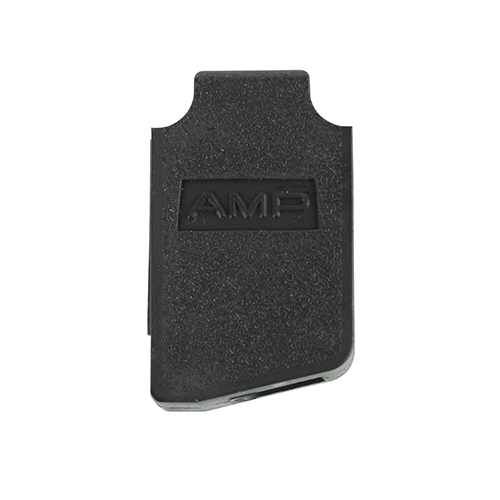

Unshielded Standard Cable Clamp | #2 Shell Size, Straight/45°, No Screw Retainers
Product Description
Unshielded cable clamps allow the cable to exit the back shell at a straight/45° angle. They can be used with on either plugs or receptacles and will not interfere with commonly used hardware such as male screw retainers, female screw locks, or spring latches and latching blocks. The hinged assembly allows for easy installation over a wire harness.
This unshielded cable clamp kit (EDMO# 5205730-1) features a #2 shell size and has a 8.13 mm cable diameter, and does not include retaining screws.
Features
- Thermoplastic unshielded, clamp shell housing
- Variable cable entry angle
- Adjustable screws can tightness cable strain reliefs
- Cable clamp kit assemblies include hardware for convenient plug/receptacle mating
Specifications
Dimensions:
1.625 x 1.073 x 0.64 in (41.28 x 27.25 x 16.26 mm)
Cable Diameter:
0.32 in (8.13 mm)
Cable Entry Angle:
variable (Straight/45°)
Connector Type:
D-Sub backshells
Number of Cable Entries:
2
Number of Positions:
15-Position
Shell Size:
2(A)
Shell Material:
thermoplastic
Shell Plating:
plastic
Product Codes
- Mfr Part No:52057301
- EDMO #:5205730-1
- Brand:TE CONNECTIVITY
- Category:Wire, Cable & Accessories
