Unshielded Standard Cable Clamp | #3 Shell Size, Straight/45°, No Screw Retainers

Product Description

Unshielded cable clamps allow the cable to exit the back shell at a straight/45° angle. They can be used with on either plugs or receptacles and will not interfere with commonly used hardware such as male screw retainers, female screw locks, or spring latches and latching blocks. The hinged assembly allows for easy installation over a wire harness.

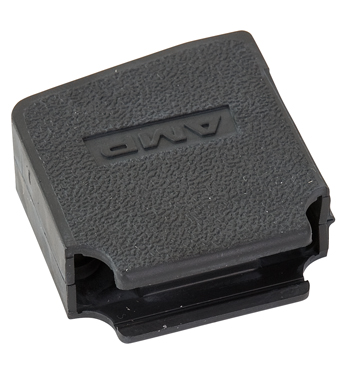

This unshielded cable clamp kit (EDMO# 5205718-1) features a #3 shell size and has a 10.67 mm cable diameter, and does not include retaining screws.

Specifications

• Dimensions:
  1.625 x 1.615 x 0.64 in (41.28 x 41.02 x 15.24 mm)
• Cable Diameter:
  0.42 in (10.67 mm)
• Cable Entry Angle:
  Variable (Straight/45°)
• Connector Type:
  D-Sub backshells
• Number of Cable Entries:
  2
• Shell Size:
  3(B)
• Shell Material:
  Thermoplastic
• Shell Plating:
  plastic

Product Codes

• Mfr Part No
  5205718-1
• MIL SPEC
  MIL-C-24308
• CSA
  FILE # LR1088108
• ECCN
  EAR99
• MIL SPEC
  MIL-C-24308
• ROHS
  YES
• SCHEDULE B CODE
  8538.90.7060
• UL
  FILE # E81956
