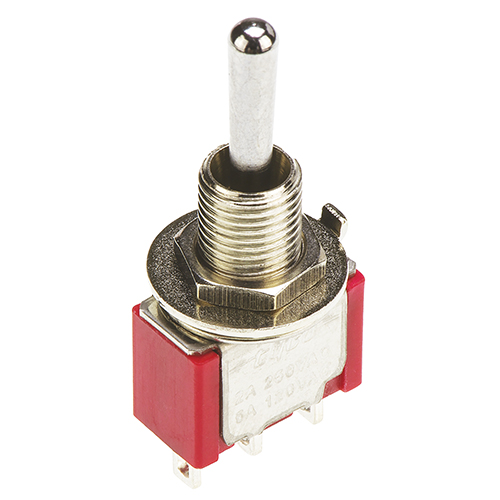

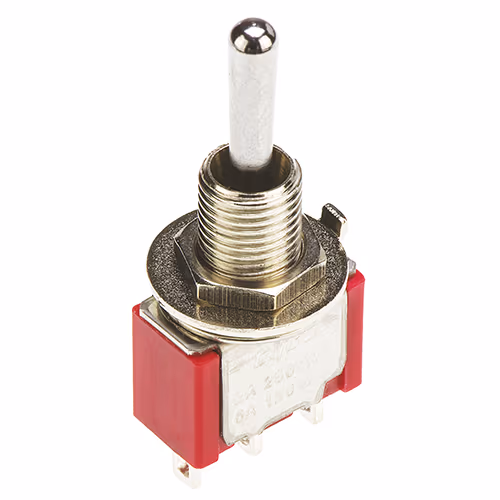

Toggle Switch SPDT Panel Mount | 1 pole, 1/4-40, silver-plated copper
Product Description
The Gemini A Series offer one and two poles with multi–circuit configurations, including: momentary function, locking toggle to avoid unwanted switching as well as bat and flat toggles in different lengths. Terminals are epoxy sealed to prevent the entry of flux, solvent and other contaminants. Gemini A switches are available with solder lug, PC, wire wrap, vertical, bracketed and angle-mount PC terminal choices.
This toggle switch (EDMO# 51825137-2) is a single pole switch, with 1/4-40 threaded bushings, and has silver-plated copper material.
Features
- Gold, gold over silver or silver contacts
- Epoxy sealed terminals
- Stainless steel frame with brass tin plated solder support
- Hardware included
- Boot seals available
These devices are well suited for designs requiring human interface via toggle or rocker-style switch, including:
- Industrial equipment
- Audio-visual equipment
- Outdoor concert and lighting equipment
- Medical
- Instrumentation
- Communication equipment
Specifications
Contact Configuration:
1 pole (EDMO# 51825137-2)
Contact Timing:
Break before make
Contact Rating MAX:
Gold: 0.4VA @ 20 VAC or DC
Gold over Silver: 5A @ 125VAC or 28VDC resistive; 0.4VA @ 20V AC; or DC or 2A @ 250 VAC resistive
Silver: 5A @ 125VAC or 28VDC resistive
Electrical life:
6,000 cycles
Contact Resistance (initial):
10 MΩ max @ 2 VDC – 4 VDC 100 mA
Insulation Resistance:
1,000 MΩ
Dielectric Strength:
1,000 Vrms @ sea level
Actuator Travel:
22° for D and E function
18° for F and G function
Environmental Specification
Operating Temperature:
-30°C to 85°C
Storage Temperature:
-30°C to 85°C
Solder Heat Resistance:
Wave solder capable to 265°C
Terminal Seal:
Single pole: epoxy
Material Specifications
Contacts B: Copper alloy finish gold over nickel
Contacts G: Copper alloy finish gold over silver
Contacts Q: Copper alloy finish silver
Actuator:
Brass alloy finish nickel
Terminals:
Contacts B: Copper alloy finish gold over nickel
Contacts G: Copper alloy finish gold over silver
Contacts Q: Copper alloy finish silver
Case:
Thermoplastic
Bushing:
Brass alloy finish nickel
Internal Actuator:
Phenolic
Spring:
Music wire
Support Bracket:
Brass tin plated
Seal:
Epoxy
Product Codes
- Mfr Part No:5-1825137-2
- EDMO #:51825137-2
- Brand:TE CONNECTIVITY
