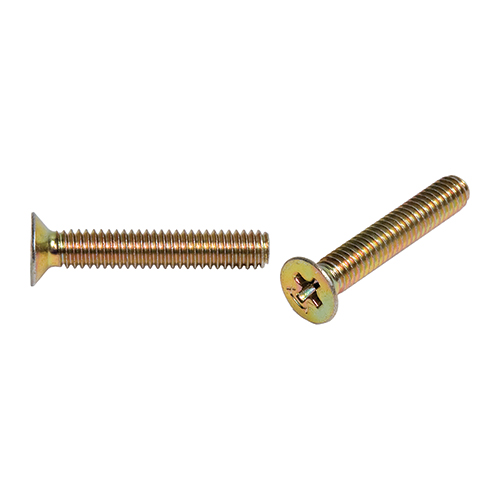

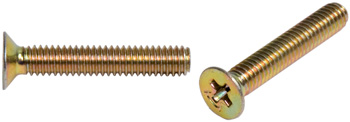

NAS514P832-16P Phillips Flat Head Countersunk Screw | 1 in. Length, 8-32 Threads

Product Description

NAS514P Series countersunk screws feature a 100 degree flat head and are made of cadmium chromate plated alloy steel material.

This Phillips head countersunk screw (EDMO# 514P83216P) has a length of 1-inch and a 8-32 thread size.

Thread Class:
3a

Thread Direction:
Right-hand

Thread Length:
0.901 – 0.932 in

Fastener Length:
0.969 – 1.000 in

Head Style:
Flat countersunk

Head Diameter:
0.282 – 0.332 in

Internal Drive Style:
Cross recess type 1

Nominal Thread Diameter:
0.164 in

Thread Quantity Per Inch:
32

Minimum Tensile Strength:
125000 lb/sq. in

Countersink Angle:
99° – 101.0°

Screw Material:
Steel comp 4037 or steel comp 8630

Screw Surface Treatment:
Cadmium and chromate

Thread Series Designator:
UNC
