5017D Wideband RF Power Sensor | 500mW–500W Avg, 1000W Peak

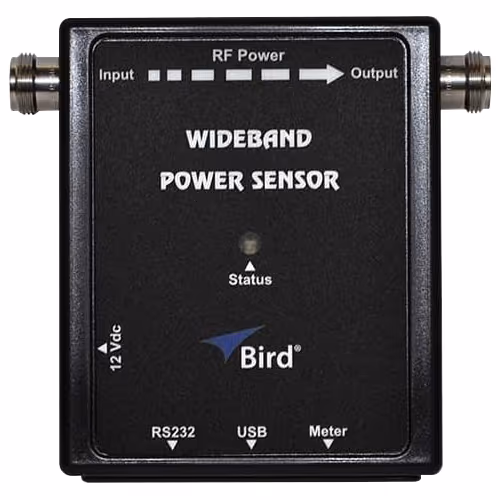

Product Description
The 5017D RF Power Sensor never requires field calibration, only requires calibration once per year and is traceable to National Institute of Standards and Technology (NIST). The WPS measures True Average Power, Peak Power, and Duty Cycle directly with exceptional accuracy and uses these precise measurements to calculate a wide range of other important factors, such as VSWR, Return Loss, Reflection Coefficient, Crest Factor, Average Burst Power, and CCDF.
Features
- Measures True Average Power, Peak Power and Duty Cycle directly with exceptional accuracy
- Calculations performed: VSWR, Return Loss, Reflection Coefficient, Crest Factor, Average Burst Power and CCDF
- Measures Modulation independent measurements for all analog, digital, and multi-carrier signals
- Sensor plug and plays with 5000-NG Power Meter and Bird’s RF Meter App
Specifications
Weight:
1.2 lbs (0.54 kg)
Dimensions:
4.8 x 4.6 x 1.3 in (122 x 117 x 33 mm)
Frequency Range:
25 MHz to 1.0 GHz
Power Range:
500 mW–500 W Avg, 1000 W Peak
Insertion VSWR:
<1.05
Insertion Loss:
<0.05 dB
Directivity:
28 dB up to 100 MHz, 30 dB from 100 to 1000 MHz
Power Supply:
USB Port: Less than one low-power
USB load DC Input Connector: 7-18 VDC at less than 0.1A
Impedance:
50 Ω (nominal)
Data Logging:
Requires 5000-XT or VPM3
Connectors:
N Female (Both)
DPM:
DB9 proprietary interface
PC Interface:
RS-232, 9600 Baud, no parity, 8 data bits, 1 stop bit, DB9; USB 2.0 Type B
Operating Temperature:
-10 °C to 50 °C (14 °F to 122 °F)
Storage Temperature:
-40 °C to 80 °C (-40 °F to 176 °F)
Product Codes
- Mfr Part No:5017D
- EDMO #:5017D
- Brand:BIRD ELECTRONICS
- Category:Wire & Cable Testers
