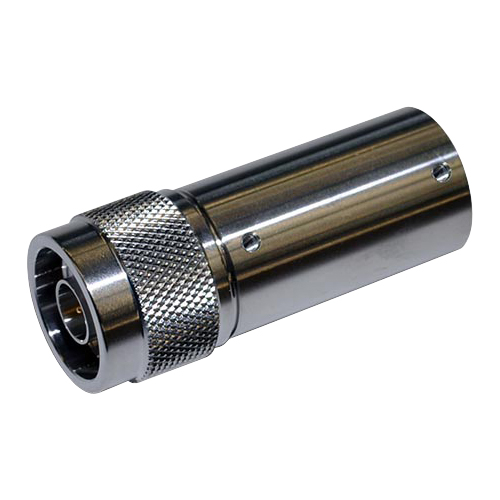

5-Watt Termination Load | 50Ω, N Male

5-T-MN

BIRD ELECTRONICS

CALL FOR PRICING
Available To Order
EDMO#5-T-MN
MFR#5-T-MN

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The 5-T Series terminations are compact, convection-cooled, and built for dependable performance up to 4 GHz. Designed with non-magnetic materials and rugged construction, they’re ideal for sensitive RF environments where stability, safety, and long-term reliability matter. When performance can't be compromised, trust Bird to deliver.

This 5-T series 5-Watt termination load (EDMO# 5-T-MN) has a male N connector.

Features

  • Self cooling design, needs no cooling plate
  • Frequencies up to 18 GHz
  • Load requires no AC power
  • Rugged construction
  • Broadband operation

Specifications

Weight:
4.6 oz (131 g)

Dimensions:
2.9 in x 1.4 in (74 mm x 36 mm)

Power Rating:
5W (max) @ 40°C

Frequency Range & VSWR:
DC to 1 GHz @ 1.10:1 max
1 to 4 GHz @ 1.25:1 max

Impedance:
50 Ohms, nominal

Connector:
N-Type Male Connector

Cooling:
Convection-Cooled

Ambient Temperature:
-40°F to 104°F (-40°C to 40°C)

Humidity:
95% noncondensing

Product Codes

  • Mfr Part No:5-T-MN
  • EDMO #:5-T-MN
  • Brand:BIRD ELECTRONICS
  • Category:Wire & Cable Testers
