D Connector Receptacle | 25 Position, Male, Solder

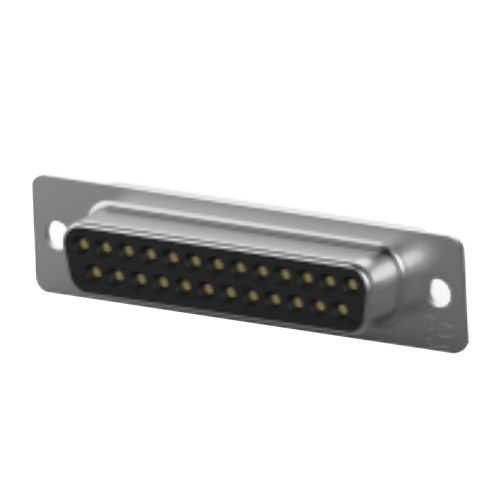

D Connector | 25 Position, Male, Solder

TE CONNECTIVITY

CALL FOR PRICING
Available To Order
EDMO#5-747913-2
MFR#5-747913-2

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The HD-20 series D connector uses common 20 sized contacts. The 5-747913-2 has 25 solder cup receptacles with gold flashing. The full metal shell is made of steel with a tin plating material.

Features

  • Solder to wire and cable termination
  • Preloaded positions
  • Shell size 3
  • 25 position
  • Contact size 20

Specifications

Wire size:
20 AWG

Positions:
25

Shell Size:
3

Shell Material:
Steel

Shell Plating:
Tin

Insert Material:
Thermoplastic

Contact Material:
Phosphor bronze

Contact Plating:
Tin-copper

Temperature:
-55 to 105 °C

Product Codes

  • Mfr Part No:5-747913-2
  • EDMO #:5-747913-2
  • Brand:TE CONNECTIVITY
  • Category:Electrical Interconnect
