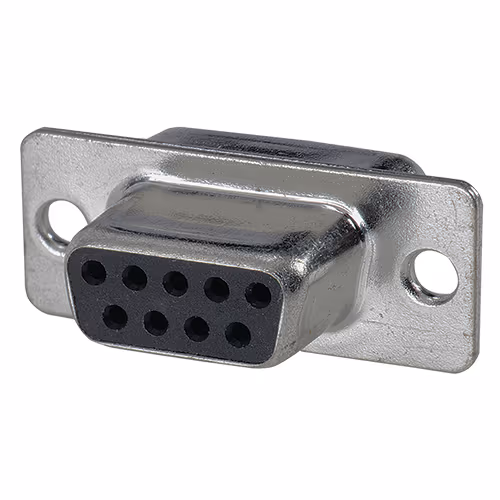

HDP-20 D Sub Connector | 9-Position 2-Row Gold Plated Socket

HDP-20 D Sub Connector 9-Position 2-Row Gold Plated Socket

TE CONNECTIVITY

CALL FOR PRICING
In Stock
EDMO#5-747905-4
MFR#5-747905-4

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

Solder cup connectors have preloaded duplex-plated solder cup contacts finished with a shell of standard zinc. The HDP-20s can be connected with other subminiature D connectors. Easily installed without special application tools.

Features

  • 9 position
  • Socket (female)
  • Through-hole terminal style
  • Straight mounting angle
  • Gold contact plating
  • Blue zinc shell plating
  • ROHS compliant

Specifications

Weight:
0.2 oz

Current Rating:
3A

Number of Positions:
9

Number of Rows:
2

Contact Material:
Brass

Contact Plating:
Gold

Shell Size:
1(E)

Shell Material:
Steel

Shell Plating:
Blue Zinc

Pitch:
2.77 mm

Product Codes

  • Mfr Part No:5-747905-4
  • EDMO #:5-747905-4
  • Brand:TE CONNECTIVITY
  • Category:Electrical Interconnect
