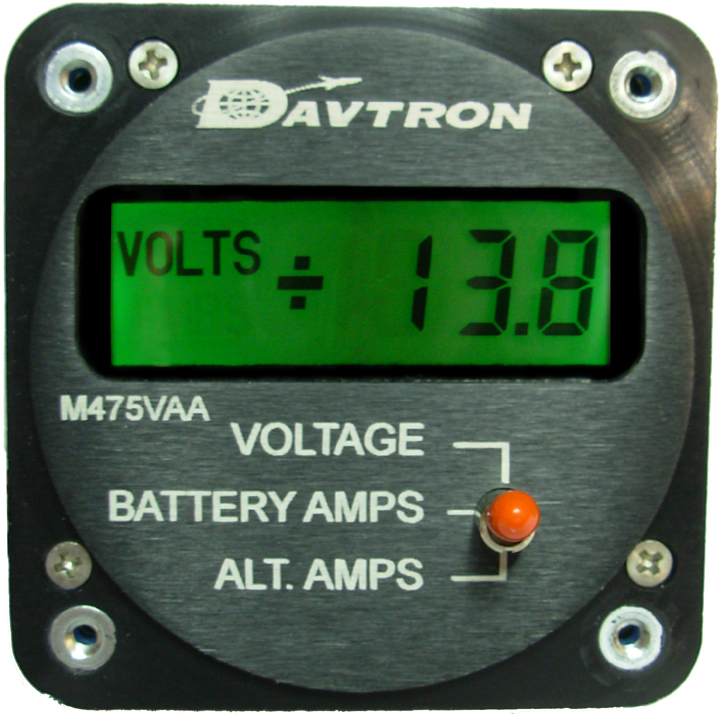

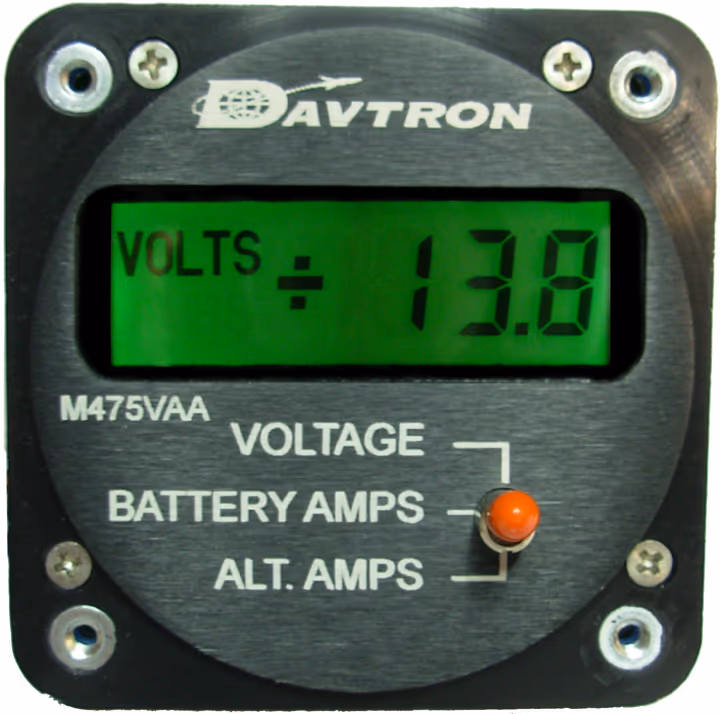

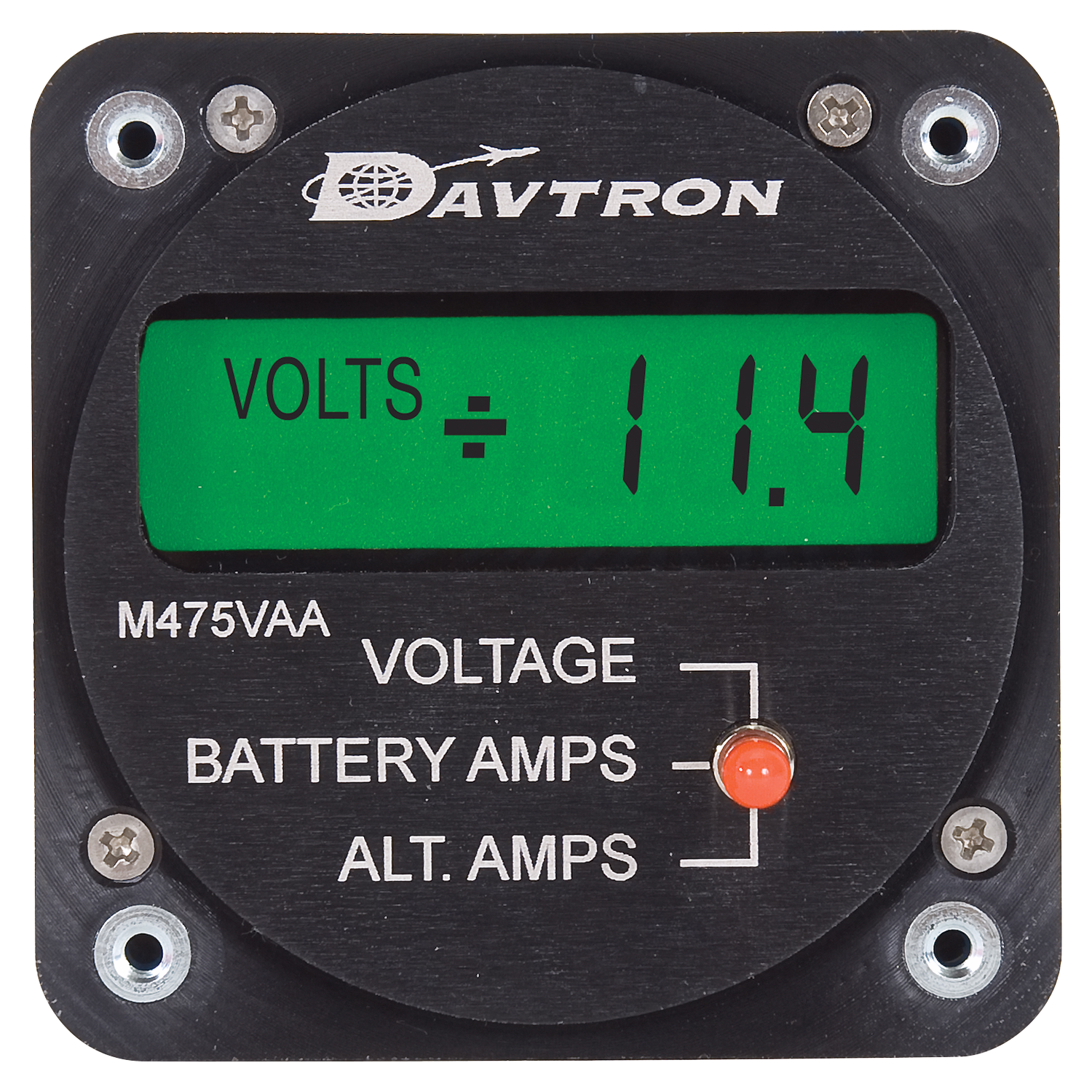

M475VAA Voltage & Dual Amperage Meter | 2-1/4-inch Mount, 5V NVG Compatible Lighting
Product Description
The M475VAA digital voltage and dual amperage meter was designed for low current drain and are used in standby and emergency battery packs.
This M475VAA digital voltage and amperage meter (EDMO# 475VAA5VN) features 5-Volt NVG compatible lighting.
Features
Low current drain .001A
± 150.0 Amp range
+100.0 Volt DC range
2.25-inch standard mount
1.3-inch case depth
5, 14 or 28 Volt back lighting
Sunlight readable
0.1 Amp resolution
0.1 Volt resolution
Specifications
Dimensions:
2.375 x 2.220 x 1.300 in
Range:
8 to 32 VDC
Input Voltage:
14 to 28 VDC
Resolution:
0.1 VDC
Input Current:
150 mA max.
Operating Temp.:
-25 ºC to 60 ºC
Accuracy:
± 1% of full scale
Product Codes
- Mfr Part No:M475VAA-5V-NVG
- EDMO #:475VAA5VN
- Brand:DAVTRON
- Category:Clocks & Instruments
- PMA:PQ1062NM
