400 Series Voltage & Dual Amperage Meter | 2-1/4 Mount, 28V Orange Lighting
Product Description

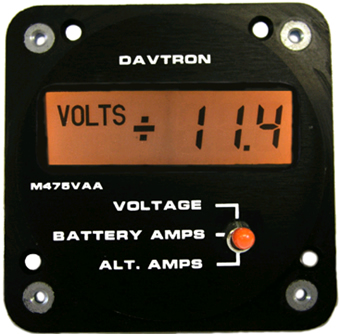

The M475VAA is a 3-function volt amp meter that can be used with a remote shunt with 14 volt lighting. This volt amp meter features a 100 DC volt range, 150 amp range, sunlight readable display, and remote lighting option. Displays voltage, battery amperage, and alternate amperage measurements.
The 475VAA-28V operates on 28V orange lighting
Features
- Orange backlighting
- Volts, battery amps, or alternate amps toggle switch
- Low current drain of 0.001 amp
- Plus or minus 150.0 amp range
- Plus 100.0 VDC range
- Remote option
- Sunlight readable display
- 0.10 amp resolution
- 0.10 volt resolution
- FAA-PMA approved
Specifications
Dimensions:
2.375 x 1.3 x 2.375 in
Range:
8 to 32 V
Input voltage:
14 to 28 V
Resolution:
0.1 V
Input current:
150 mA
Operating temperature:
-25°C to +60°C
Product Codes
- Mfr Part No:M475VAA-28V
- EDMO #:475VAA-28V
- Brand:DAVTRON
- Category:Instruments
