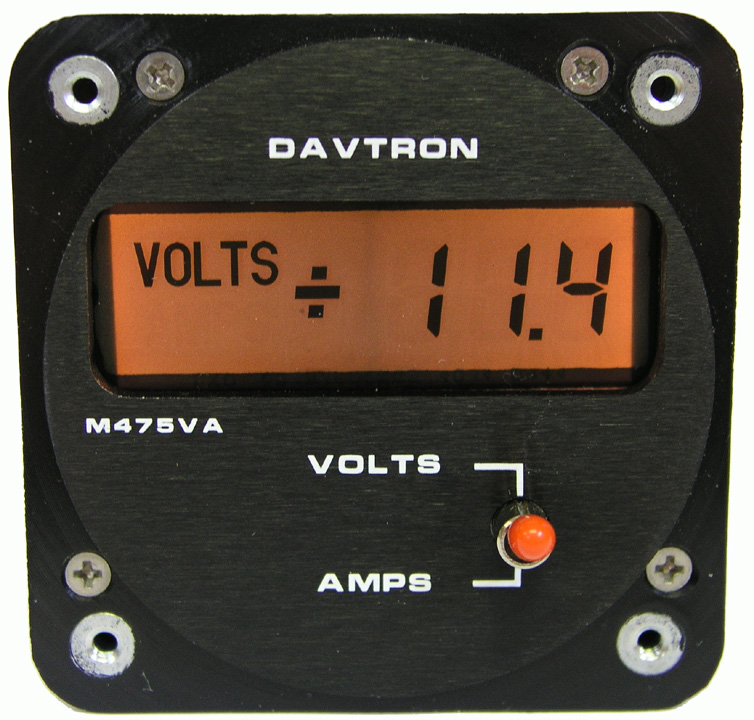

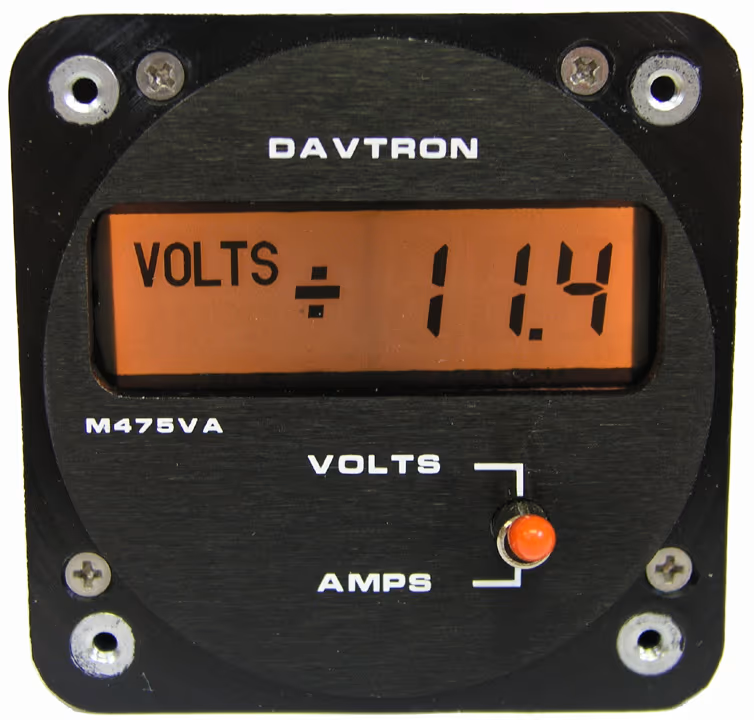

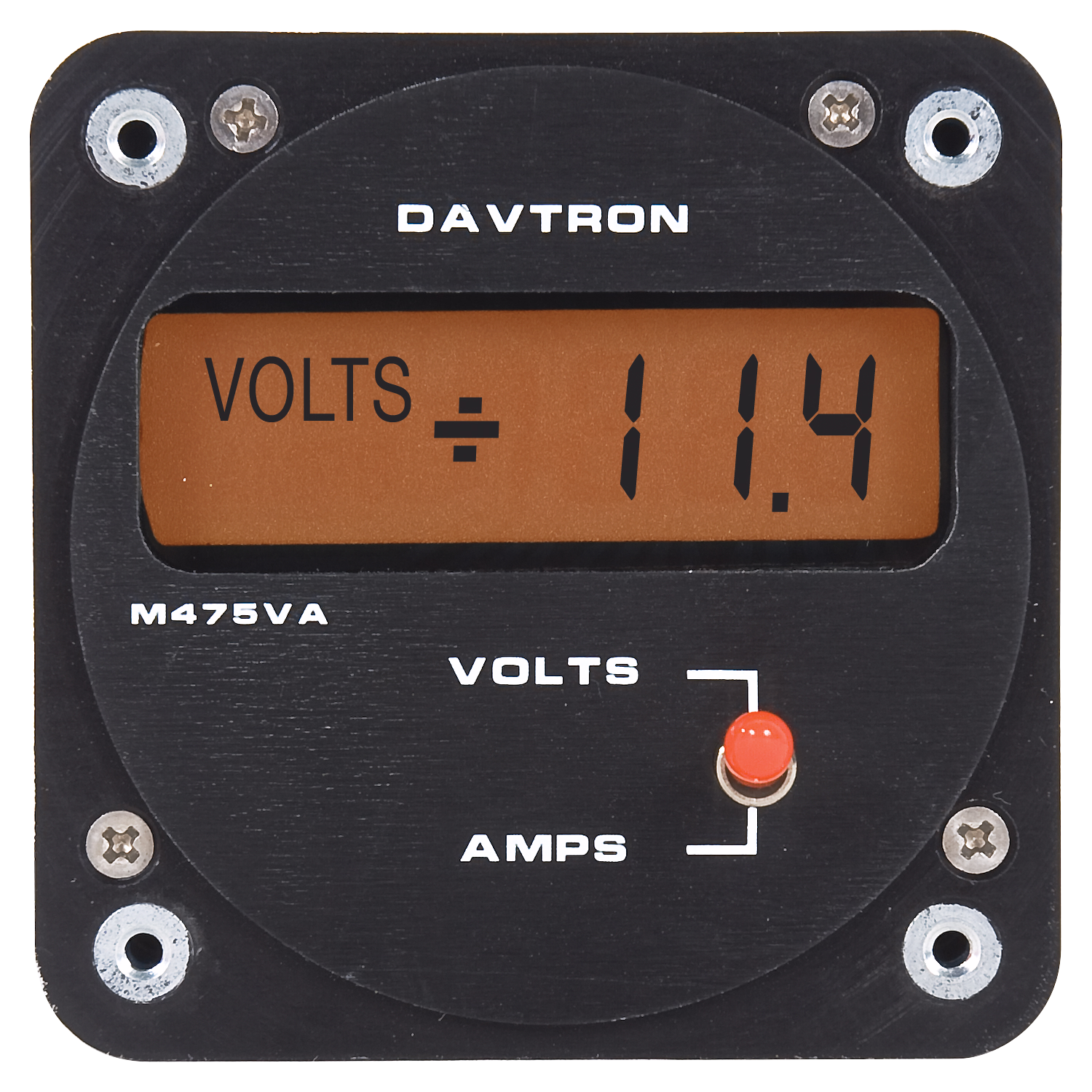

400 Series Voltage & Dual Amperage Meter | 2-1/4 Mount, 5V Orange Lighting

M475VA-300dpi

DAVTRON

CALL FOR PRICING
Available To Order
EDMO#475VA-5V
MFR#M475VA-5V

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The M475VA and M475VAA were designed for low current drain and are used in standby and emergency battery packs.

Note: Shunts can be remoted (special order). Extreme care must be taken to fuse wire when using remote shunts. See part numbers with an ""R"" in them for remote shunts.



    Features

    • Low current drain .001A
    • +- 150.0 amp range
    • +100.0 volt DC range
    • 2.25"" standard mount
    • 1.3"" case depth
    • 5, 14 or 28 volt back lighting
    • Sunlight readable
    • .1A resolution
    • .1V resolution



    Specifications

    Range:
    8 to 32 Volts

    Input Voltage:
    14 to 28 Volts

    Resolution:
    0.1 Volt

    Input Current:
    150 mA max.

    Operating Temp.:
    -25°C to +60°C

    Accuracy:
    +/- 1% of full scale



    Product Codes

    • Mfr Part No:M475VA-5V
    • EDMO #:475VA-5V
    • Brand:DAVTRON
    • Category:Instruments
