SunSpot 46-4000 Series LED Landing Light | 28 V, WigWag
Product Description

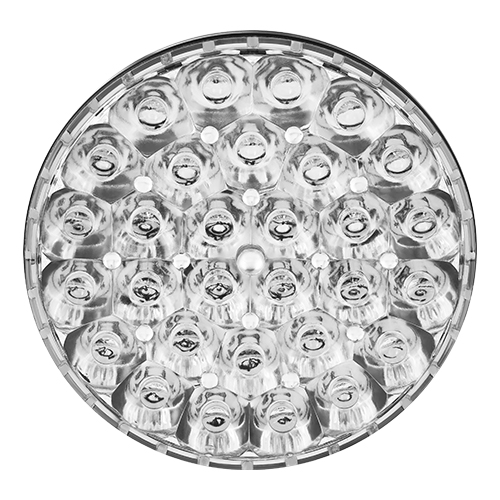

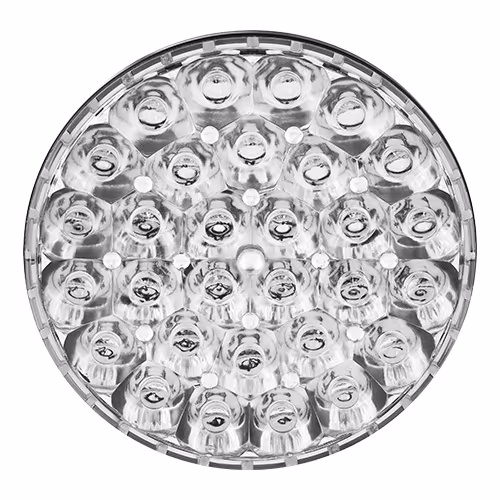

The SunSpot 46 Series LED landing light delivers exceptionally high candela output with a focused 20° x 20° beam that dramatically enhances visibility on approach, rollout, and in-flight recognition—visible from up to 30 miles away. Designed for pilots who demand maximum performance, the SunSpot Series provides superior lumen output and beam quality while drawing less power than traditional incandescent lamps.
Its daylight-white color temperature reveals the true color and contrast of runway markings and terrain—eliminating the dull, amber cast of legacy bulbs. Built to withstand the rigors of flight, every SunSpot 46 light mounts directly into standard PAR46 housings for straightforward installation.
The H Models feature AeroLEDs’ Integrated Pulse (WigWag) Technology, improving aircraft conspicuity without external controllers and drawing up to 50% less current during use.
This SunSpot 46-4000 series LED landing light (EDMO# 46-4580) is a 28-volt unit.
Features
- High-efficiency, low-power LEDs
- Long-life, low maintenance design
- Shock and vibration resistant
- Built-in thermal protection
- UV hardcoated polycarbonate lens
- Black powder coated aluminum heat sink
- Integrated pulse option (H models)
- AeroLEDs pulse synchronization
Specifications
Weight:
11.5 oz
Dimensions:
5.6 x 5.6 x 1.9 in
Mounting:
Fits standard PAR 46 mounts
Voltage:
18–30 VDC, 28 VDC (Nominal)
Current:
6.3 A @ 28 VDC
Power:
175 W
Peak Candela:
325k (Peak)
Beam Profile:
20º Vertical x 20º Horizontal (@ 10% Peak)
Lifespan:
30,000 hours
Lens Material:
UV-coated polycarbonate
Approvals:
FAA-PMA/STC
Product Codes
- Mfr Part No:01-2230-4580-H
- EDMO #:46-4580-H
- Brand:WHELEN ENGINEERING
- Category:Antennas & Couplers
