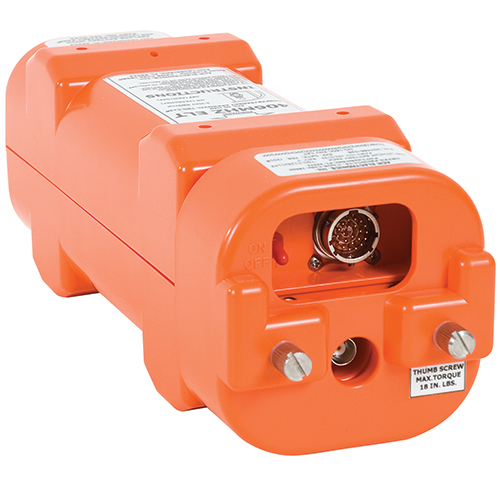

C406-N HM ELT System | Single Output, Nav, Helicopter

ACR ELECTRONICS / ARTEX

Call For Pricing

Available to order

EDMO # 455-5061

MFR Part # 455-5061

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The C406 series Emergency Locator Transmitter is an automatic fixed type ELT which transmits on 121.5, 243.0, and 406 MHz frequencies. In the event of a crash the ELT automatically activates transmitting the standard swept tone on 121.5 and 243.0 MHz. It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.

Model C406-N HM is a single BNC output ELT with a multi-axis G-switch for helicopter applications. Connects directly to aircraft navigation system. Capable of custom programming with optional adapter.

Features

Version 455-5061 includes:
C406-N HM ELT
Lithium battery
Install kit (455-7422)
Mounting tray (452-5050)
Top cover (452-3052)
Mounting cap (452-5066)
Buzzer (130-4004)
Features:
Operates on 121.5, 243, and 406 MHz frequencies for global coverage
RF output
Rod, whip, and blade antenna compatible
Compatible with aircraft navigation system, supports ARINC 429
Automatic or manual activation
5-year lithium battery
Self tests: G-Switch Enabled, 406 MHz Power Antenna/Coax Connection, Position Data Present, Low Battery, and Presence of Navigation Data

Also Purchased

Specifications

Weight:

3.16 lb (1.43 kg), ELT transmitter 4.24 lb (1.9 kg), total weight with mounting frame assembly Dimensions: 11.74 x 3.9 x 3.82 in, with mounting hardware installed
Model:

C406-N HM Antenna: Not included
Operating Frequencies:

406 MHz, 121.5 MHz, 243 MHz ±0.005% (A3X) Output Power: 406 MHz: 5W (520 ms/50 sec) for 24 hours @ -20°C to 55°C 121.5/243.0 MHz: 100 mW min (+20 dBm) for 50 hours @ -20°C to 55°C Output Connector: BNC Female (121.5/243.0/406 MHz) Activation: Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or 12.5 G (+/- 1 G) 5-Way HM G-Switch or Manual Activation
Battery:

5-year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133 Temperature Certified to: Operating: -20°C to 55°C, Storage: -55°C to 85°C Remote Switch: Not included
