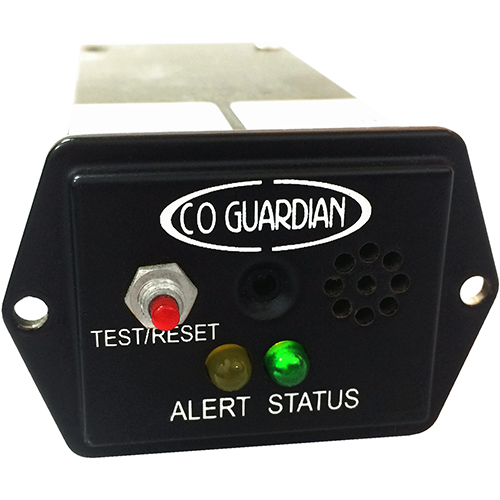

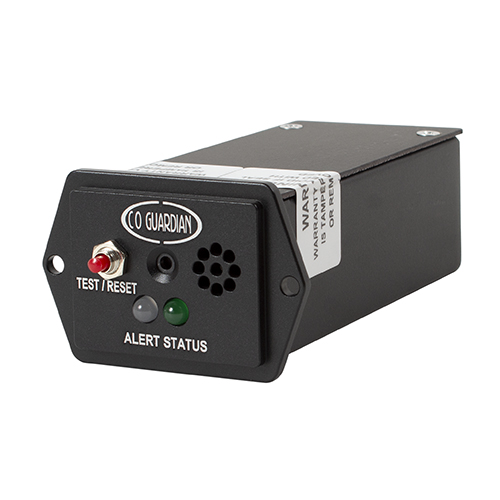

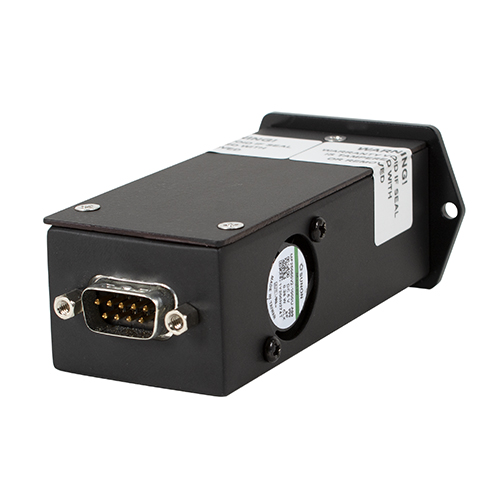

AERO 451 CO Detector | Panel Mount

CO GUARDIAN AVIONICS

Call For Pricing

In stock

EDMO # 451-101

MFR Part # 451-101

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AERO 451-101 is a panel mount carbon monoxide detector designed for FAA certified Part 23 aircraft, and Part 27 and Part 29 rotorcraft. Compact and lightweight, this CO detector requires little panel space and provides highly accurate CO detection. This unit is perfect for builders and pilots who are looking for basic protection from the dangers carbon monoxide in their certified aircraft or helicopter.

Installation is authorized for Part 23, 27, and 29 aircraft/rotorcraft under Non-Required Safety Enhancing Equipment (NORSEE) and requires a minor alteration logbook entry by an IA.

Features

Designed for Part 23 aircraft and Part 27 and 29 helicopters
Loud 85 db alarm when CO levels are between 50 to 99 ppm
Flashing amber LED warning when CO levels are between 50 to 99 ppm
Flashing red LED warning when CO levels exceed 99 ppm
Fits 2.25 x 1.5 in. instrument opening
Internal fan for optimum sensing
Shielded to prevent EMI with aircraft systems
Built-in Temperature compensating circuit
Compatible with external annunciator light (sold separately)

Also Purchased

Specifications

Weight:

3.5 oz
Dimensions:

3.35 x 2.25 x 1.50 in
Input Power:

14 VDC and 28 VDC
LED indicators:

LED red and amber CO alert lights // LED green nominal indication light
Temperature:

0°F to 110°F
