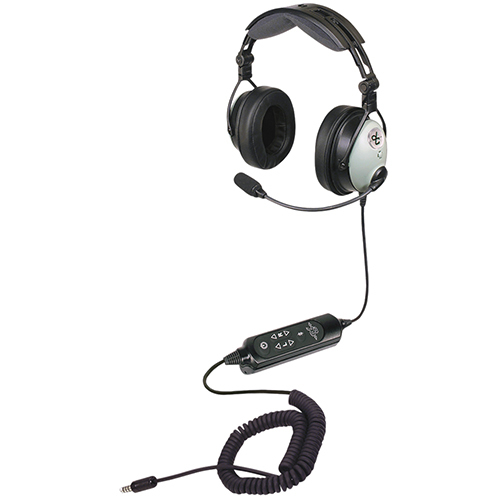

DC One-XH Aviation Headset | Bluetooth, Hybrid ENC, U-174 Plug, 5' Coil Cord
Product Description
The DC One-XH headset offers helicopter pilots the perfect combination of comfort, technology, and durability. Built-in Bluetooth allows cellphones, MP3 players, tablets, or other personal devices to seamlessly integrate into the headset. The headpad is constructed of soft Outlast fabric that absorbs heat buildup and keep users cool during long flights. Plush leatherette ear seals with memory foam deliver excellent noise attenuation and comfort. A fully adjustable suspension assembly is integrated into the headband for a personal fit. Swivel hinge stirrups disperse clamping pressure, allowing the headset to conform to the users head. Hybrid ENC technology provides active noise reduction (ANR) with feed-forward/feed-back technology, and an external microphone on the dome picks up outside noise for superior noise attenuation.
Features
- The DC-ONE XH has a 5-foot extended coil cord and a single U-174/U plug for helicopter
- Bluetooth wireless technology seamlessly integrates cellphones, MP3 players, tablets, or other personal devices
- Compact in-line control module with backlit touch-key user interface
- Hybrid Electronic Noise Cancellation provides best-in-class active noise cancellation
- Fail-safe operation ensures full communication in the event of battery loss or system failure
- Digital signal processing (DSP) provides high fidelity audio
- High performance, electret microphone with enhanced noise cancelling
- Rugged lightweight alloy headband and suspension system is adjustable for personalized fit
- Over-the-ear leatherette recovery foam seals cradle and comfort for a snug, secure fit
- Low profile, Outlast® fabric head pad with vented design absorbs excess heat
- Audio mute reduces auxiliary audio volume to prevent missed communications
- Stereo/Mono selection is compatible with all aircraft audio panels
- Collapsible, folding design for compact storage in included David Clark headset bag
- TSO C-139a approval
Specifications
Weight w/o Cable:
12.3 oz. (349 g)
Ear Coupling:
Around-the-ear (Circumaural)
Hardware:
Lightweight Alloy
Connector Type:
Standard dual GA plugs
Connection Cable:
0.155” (4-mm) OD shielded cable, length ~ 6 ft. (1.8 m)
Battery Life:
Up to 50 hours (2 AA batteries)
Operating Temperature:
-20°C to +70°C
Operating Voltage:
3VDC (2x AA)
Dome Type:
ABS
Characteristic SPL:
95 dB SPL (1 kHz, 1 mW) @ maximum volume nominal
Contact Pressure:
1.4 lb. (6.2 N)
ENC Peak Attenuation:
30dB @ 150Hz
ENC Attenuation Range:
20Hz―1KHz
Total Harmonic Distortion (THD):
< 1% - 110 dB SPL (300 - 3,000 Hz)
Ear Transducer Principle:
Dynamic
Ear Impedance:
150 Ω mono / 300 Ω stereo (each ear)
Ear Freq Response:
12 - 15,000 Hz
Microphone Principle:
Pre-polarized condenser microphone (electret), noise cancelling
Mic Impedance:
150Ω nominal
Mic Sensitivity:
400mV+/-6dB into 150Ω load @ 1kHz for 114 dB SPL input
Mic Freq Response:
150 - 8,000 Hz
Mic DC Supply V:
8-16V, not polarity sensitive
Source Resistance:
470Ω
Product Codes
- Mfr Part No:43102G-06
- EDMO #:43102G-06
- Brand:DAVID CLARK COMPANY
- Category:Headsets & Intercoms
