Model 4300 Attitude Indicator | 3-1/8in, Electric, Rotating Roll, Delta, 10-32 VDC
Product Description

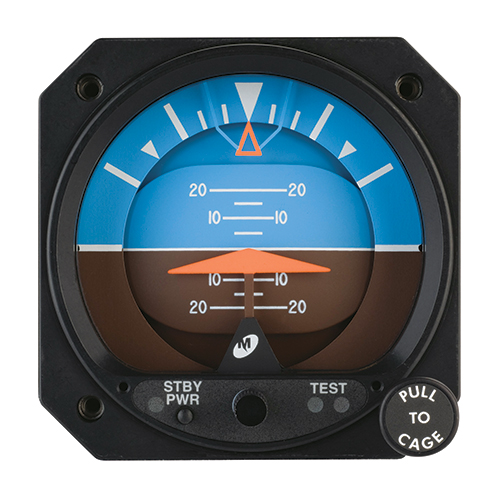

The Model 4300 Electric Attitude Indicator incorporates a moving display that simulates the earth’s horizon and provides the pilot with a real time visual indication of the aircraft pitch and roll attitude relative to the indicator symbolic airplane.
Version (#EDMO 4300-413) is a 3-1/8 inch 10-32 VDC electric attitude indicator with rotating roll and delta symbolic aircraft.
Features
- A safe alternative to unreliable vacuum systems
- Ideal primary or standby artificial horizon in fixed-wing and helicopter applications
- Single 4-pin connector installation
- 7,500 hours MTBF — more than double the life of most electric gyros
- 10–32 volt DC operation for use in both 14 and 28 volt aircraft
- Field-replaceable lighting
- Anti-reflective glass enhances visibility and reduces pilot fatigue
- FAA TSO-C4c certified and RTCA DO-160D qualified
- DO-160 qualified for helicopter vibration
Specifications
Weight:
2.7 lbs.
Length:
6.6 inches
MTBF:
7,500 Hours
Certification:
FAA TSO-C4c
RTCA/DO-160D
Power Input:
10–32 VDC:
1400 mA start, 600 mA max at 14 VDC input
700 mA start, 300 mA max at 28 VDC input
Annunciators:
STBY PWR (standby power mode)
TEST (battery test — red/green)
Lighting:
5, 14 or 28 VDC Incandescent
Field-replaceable tray wired through main connector
Glass:
Special HEA anti-reflective coating
Mounting:
Rear mount in standard 3 1/8” round panel cutout
Temperature Range:
–30°C to +70°C (–22°F to +158°F)
Mating Connector:
Mid-Continent P/N 9015514 (MS3116F8–4S)
Panel Tilt:
Aircraft specific — calibrated at factory
Specify exact tilt between 0° to 20° when ordering
Dial:
Rotating roll dial, traditional symbolic airplane
