APM-424 MK XIIA Flight Line Test Set | KIV-78 Option, APM-424(V)5, MK XIIA
Product Description
The VIAVI APM-424(V)5 easily accommodates a variety of aircraft, ground, and ship platforms to test transponder and interrogator performance. The APM-424(V)5 is a Mode 5 and ADS-B performance and capability upgrade to the TS-4530 and APM-424 legacy test sets. The unit closely replicates legacy operation for utilization of existing procedures, making the APM-424(V)5 a cost effective, highly accurate upgrade to fielded test sets.

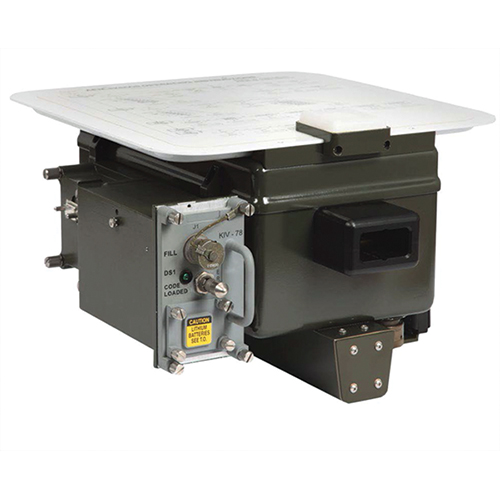

This APM-424 MK XIIA Flight Line Test Set (EDMO# 424V5-78) includes a KIV-78 adapter.
Features
- DoD AIMS 03-1000A Mark XIIA (Mode 5 level 1 and 2) certified *
- Transponder Test Set Modes 1, 2, 3/A, C, 4, S, and Mode 5 * (Level 1 & 2)
- Mode S Elementary and Enhanced Surveillance
- Interrogator Test Set Modes 1, 2, 3/A, C, 4, S, TCAS, ETCAS and Mode 5 * (Level 1 & 2)
- Self-diagnostic
- Factory upgrade kits available for APM-424(V)3 and TS-4530 units
- Comes with KIV-78 adapter
Specifications
Weight:
12.25 lbs (5.6 kg)
Dimensions:
7.5 x 11.5 x 14.1 in (19.05 x 29.21 x 35.81 cm)
Operating Temperature:
-40° to 55°C (-40° to 131°F)
Storage Temperature:
-55° to 85°C (-67° to 185°F)
Product Codes
- Mfr Part No:91066
- EDMO #:424V5-78
- Brand:VIAVI
- Category:Flight Line Test Sets
