Heavy Duty Light Meter | PC Interface
Product Description

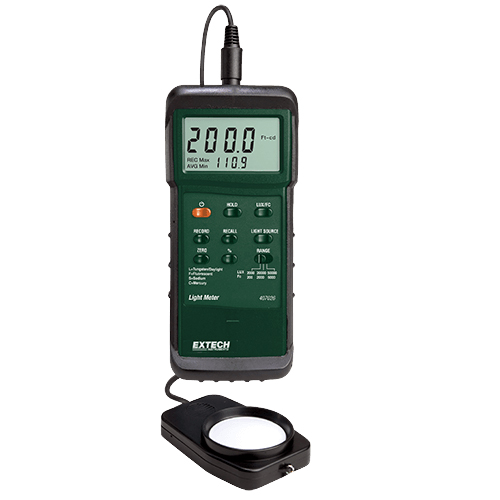

The 407026 Heavy Duty Light Meter has 4 lighting type settings for enhanced accuracy (Tungsten/Daylight, Fluorescent, Sodium, Mercury). Additional features include Data Hold, Min/Max/Average, Auto power off and a % reading of the differential from a reference point. Built-in RS-232 interface with optional Data Acquisition Software and Data logger.
Features
Includes:
- 9V battery
- Light sensor with 45 in. cable
- Protective cover
- Holster with stand
Features:
- Microprocessor assures maximum accuracy plus special functions
- Super large 1.4 (1999 count) LCD display
- % displays differential from reference point
- ZERO Re-Calibration
- Utilizes precision photo diode and color correction filter
- Cosine and color corrected measurements
- 4% accuracy is enhanced by selecting lighting type (Tungsten/Daylight, Fluorescent, Sodium, Mercury)
- Record/Recall MIN, MAX and AVG readings
- Data Hold plus Auto shut off
- Built-in RS232 serial interface
Interface Options (optional):
- Optional Windows® Data Acquisition Software and serial cable enable user to display and capture readings on a PC, and set time intervals and alarms
- Optional battery operated Datalogger module stores over 8000 readings for later transfer to a PC
Specifications
Weight:
1.6 lb
Dimensions:
7 x 2.9 x 1.3 in.
FC range:
200, 2000, 5000Fc
Lux range:
2000, 20000, 50000Lux
Max resolution:
0.1Fc/1Lux
Basic accuracy:
±4%FS
Cosine & color corrected:
Yes
PC interface:
Yes
Product Codes
- Mfr Part No:407026
- EDMO #:407026
- Brand:EXTECH
