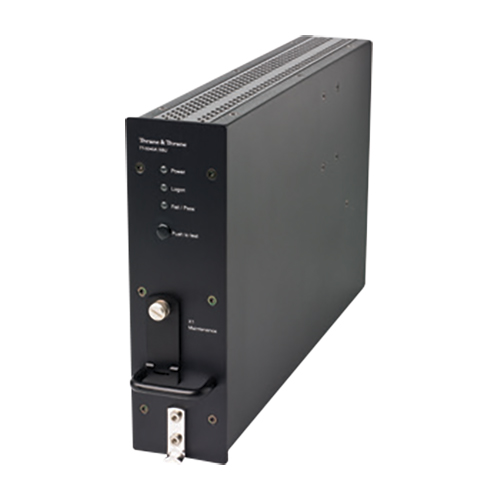

405040A-THD Swift Broadband Unit | AVIATOR 700D
Product Description
The Swift Broadband Unit (EDMO# 405040ATHD) is a compact, high-performance module designed for seamless satellite communication integration on aircraft. It supports up to eight simultaneous voice calls and provides IP Packet or streaming SwiftBroadband data. With built-in Ethernet connectivity, a router featuring six ethernet interfaces, and a wireless access point, it allows multiple devices to connect effortlessly. This lightweight, two MCU unit is energy-efficient, requires no forced cooling, and integrates easily with existing systems. FAA PMA certified, it's ideal for reliable in-flight connectivity.
Features
- Up to eight simultaneous voice calls
- IP Packet or streaming SwiftBroadband data
- Ethernet connectivity
- Built-in router with six ethernet interfaces
- Built-in wireless access point
- Low weight and power consumption
- Compact two MCU size
- No forced cooling required
- Easy integration
- FAA PMA
Specifications
Weight:
6.2 lbs (2.8 kg)
Dimensions:
12.62 x 2.25 x 7.62 in (320.5 x 57.2 x 193.5 mm)
Power:
28 VDC (max), 30 W (typical), 83 W (max)
Altitude:
MSL to 55,000 ft
Temperature:
-25°C to 55°C
Connectors:
Rear: ARINC 404A
Front: RJ-45
Product Codes
- Mfr Part No:405040A-THD
- EDMO #:405040ATHD
- Brand:COBHAM
- Category:Tactical Communication & Audio Systems
