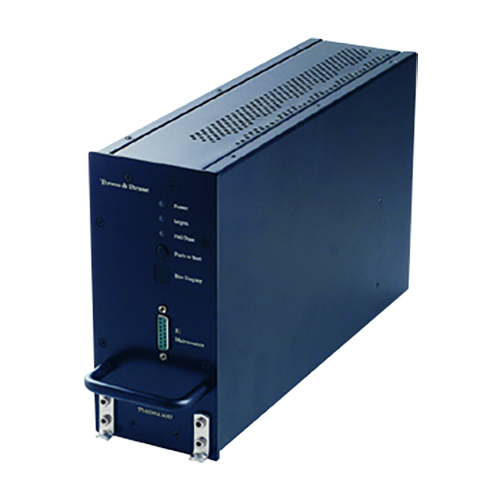

405035A-THD Satellite Data Unit | AVIATOR 700D
Product Description
The Satellite Data Unit (EDMO# 405035ATHD) is a critical component of the AVIATOR 700D system, seamlessly integrating Aero-H+ and Swift64 services. It enables robust communication features, including built-in handsets, ARINC 429 support for essential aircraft systems, and connectivity via Ethernet, ISDN, and RS422. With no need for forced cooling and advanced features like Built-In Test Equipment (BITE) and detachable Configuration Module (CM), the SDU ensures reliable data transmission and management, making it ideal for tactical, VIP, and commercial aircraft platforms.
Features
- Seamless integration of Aero-H+ and Swift64 services into one unit
- No forced cooling required
- Built-in CTU connects up to six (standard or wireless) handsets incl. two 2-wire (RJ-11/ POTS) interfaces - no converter box required. Detachable Configuration Module (CM)
- Built-In Test Equipment (BITE)
- ARINC 429 for IRS, AHRS, ACARS, MCDU, CMU, AFIS, CPDF
- RS-232C port for Portable Data
- Loader/Configuration Management Terminal (PDL/CMT)
- Ethernet connectivity
- ISDN connectivity
- RS422 connectivity
- FAA PMA
Specifications
Weight:
7.2 lbs (3.5 kg)
Dimensions:
12.62 x 3.56 x 7.62 in (320.5 x 90.4 x 193.5 mm)
Power:
28 VDC (max), 30 W (typical), 50 W (incl. handsets and DLNA)
Altitude:
MSL to 55,000 ft
Temperature:
-25°C to 55°C
Connectors:
Rear: ARINC 404A
Front: SUB-D 15 Female
Product Codes
- Mfr Part No:405035A-THD
- EDMO #:405035ATHD
- Brand:COBHAM
- Category:Tactical Communication & Audio Systems
