Toggle Switch | Double Pole Double Throw, 3 Position, ON-ON-ON

Toggle Switch | Double Pole Double Throw, 3 Position, ON-ON-ON

TE CONNECTIVITY

CALL FOR PRICING
Out of Stock
EDMO#4-64376305
MFR#4-6437630-5

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The F Series switches are high performance, high current, and high voltage toggles in a small case. Electrical life is rated from 25,000 to 50,000 cycles at full load, has a resistance of 10 milliohms max., insulation resistance of 1,000 megohms and actuation force of 19.6 N max.

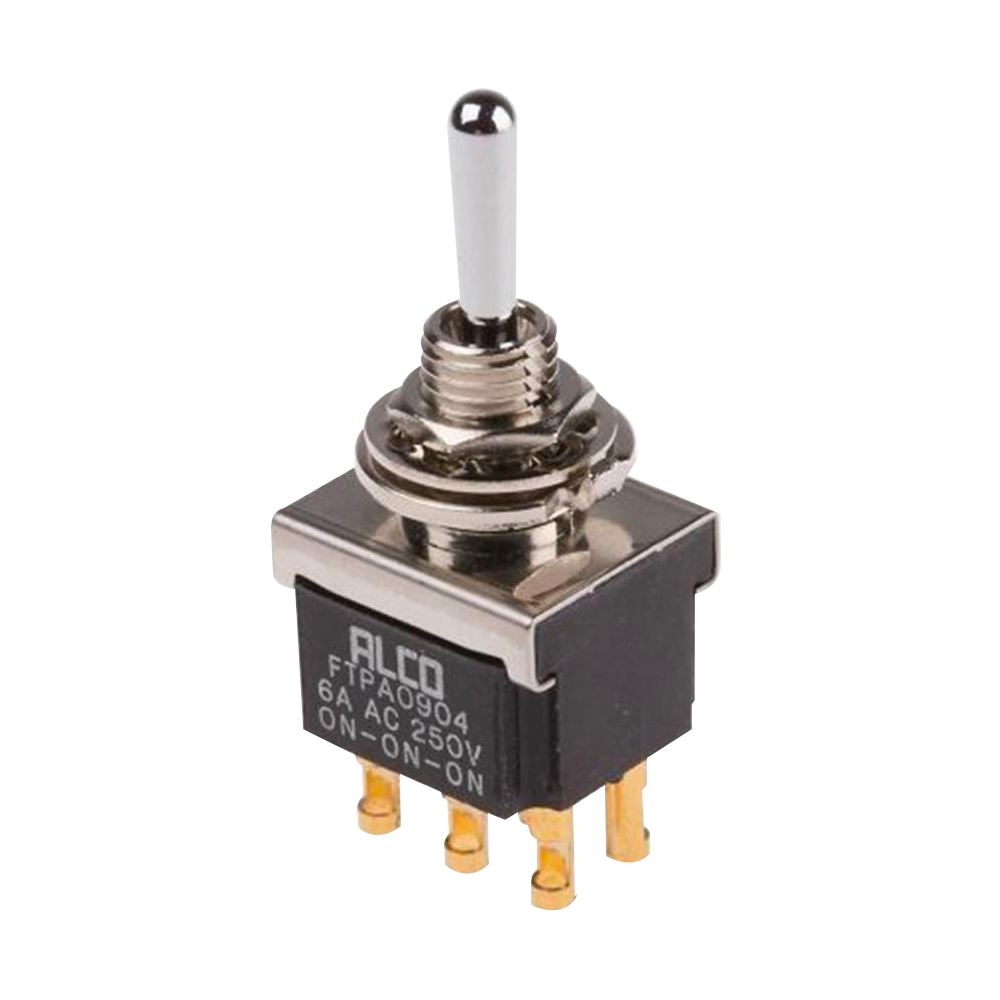

This toggle switch (EDMO# 4-64376305) is a double pole, double throw, 3 position toggle switch. The switch function is ON-ON-ON.

Features

  • Gold-flashed terminals
  • Panel mount
  • 6.0 mm threaded bushing
  • Brass construction with chrome plating
  • Break before make contact timing

Specifications

Number of poles:
2

Switch function:
ON-ON-ON

Terminal type:
Leadwire hooking type

Actuator:
Standard toggle

Contact material:
Silver

Approval:
RoHS compliant

Product Codes

  • Mfr Part No:4-6437630-5
  • EDMO #:4-64376305
  • Brand:TE CONNECTIVITY
  • Category:Electrical Interconnect
