Socket Contact | Crimp Type, Size 12
Product Description

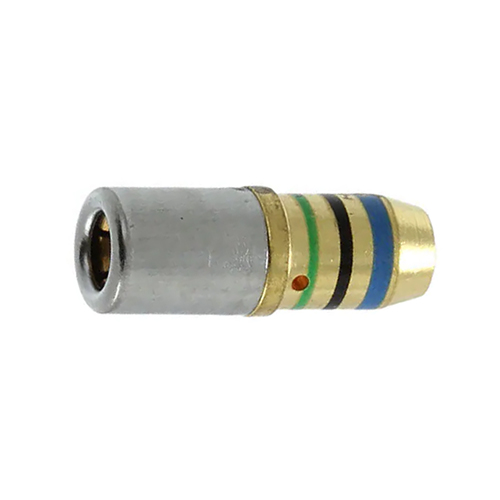

This size 12 crimp style contact socket (EDMO# 3902922605) accepts 14 AWG – 12 AWG wire. The copper alloy socket body is gold plated with a stainless steel socket sleeve.
Features
- Socket contact
- Applies to wire/cable
- Contact size 12
- Crimp style
- Blue, black, green color bands
Specifications
Weight:
0.00011 lb
Dimensions:
0.455 x 0.171, max
Size:
12
Color bands:
blue, black, green
Wire Gage:
12 – 14 AWG
Crimp Tool:
AF8 (M22520/1-01)
Crimp Tool Positionor:
TH343 (yellow)
Strip Length:
0.225 ±0.020 in
Insertion/Removal Tool:
M81969/16-03
M81969/8-10
Unwired Removal Tool:
M15574-16
Finish:
Socket body: gold plated per MIL-G-45204 Type II, Class 1
Socket sleeve: passivated
Material:
Socket body: copper alloy per MIL-C-39029, Type A
Socket sleeve: stainless steel
Product Codes
- Mfr Part No:M39029/22-605
- EDMO #:3902922605
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
