Extech 380560 High Resolution Precision Milli-ohm Meter | 110VAC/220VAC
Product Description

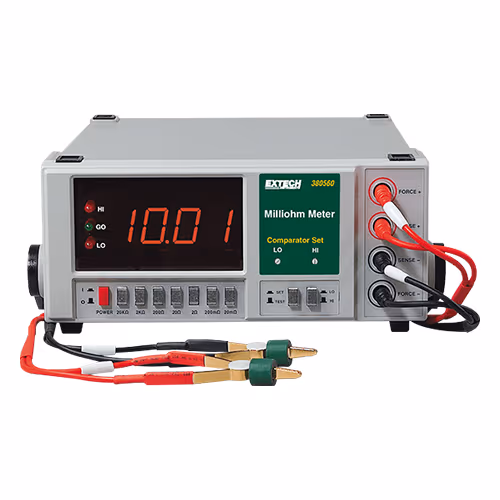

The 380560 bench-top precision milli-ohm meter provides resolution down to 0.01mΩ using 4-wire Kelvin clip test leads. Featuring 7 ranges for wide low resistance measurements, 1999 count display with 0.8" digits, automatic zero function. Built-in comparator for Hi/Lo/Go resistance testing or selection. Complete with 4-wire cables with Kelvin clip connectors and power cord.
Features
- 7 ranges for wide low resistance measurements
- High resolution to 0.01m
- 1999 count display with 0.8" digits
- Automatic zero
- Built-in comparator for Hi/Lo/Go resistance testing or selection
- 5V test voltage
- Complete with 4-wire cables with Kelvin clip connectors and power cord
Specifications
Weight:
4.85lb (2.2kg)
Dimensions:
11 x 8.3 x 3.5" (280 x 210 x 90mm)
Power:
110VAC, 60Hz or 220VAC, 50Hz
Wire Connection:
4-Wire
Resistance:
20mΩ: 0.01mΩ 1A ±(0.2% + 6d)
200mΩ: 0.1mΩ 1A ±(0.2% + 4d)
2Ω: 0.001Ω 100mA ±(0.2% + 4d)
20Ω: 0.01Ω 10mA ±(0.2% + 4d)
200Ω: 0.1Ω 1mA ±(0.2% + 4d)
2kΩ: 0.001kΩ 100μA ±(0.2% + 4d)
20kΩ: 0.1kΩ 10μA ±(0.2% + 4d)
Product Codes
- Mfr Part No:380560 CAL
- EDMO #:380560CAL
- Brand:EXTECH
- Category:Bench Test Sets
