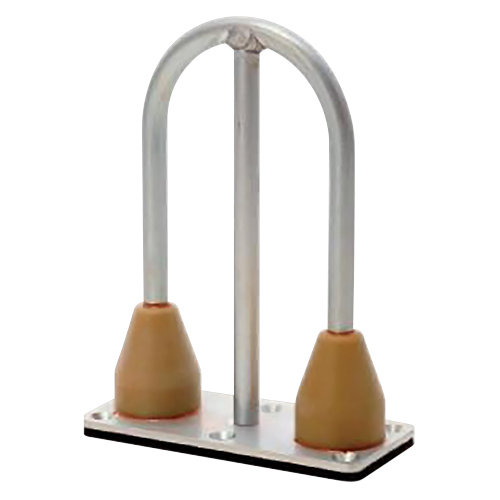

37P-4 UHF Glide Slope Antenna | 329–336 MHz

37P-4

RAMI

CALL FOR PRICING
Available To Order
EDMO#37P-4
MFR#37P-4

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The 37P-4 is designed for use with Glide Slope receivers for reliable performance. The antenna is lightweight and is suitable for mounting either in a radome or externally on the aircraft. The antenna is provided with an adapter plate with an 11-inch radius for mounting on rounded fuselages. The antenna has an N Female Connector and is finished with a chemical film coating per Military Specification MIL-DTL-5541, Class 1A, Type 2 for maximum corrosion protection in a salt-laden atmosphere.

Features

  • 329–336 MHz frequencies
  • Horizontal polarization
  • Forward directional pattern
  • 50 Ω impedance
  • N female connector

Specifications

Weight:
0.7 lbs

Application:
Glide Slope

Frequency:
329–336 MHz

Impedance:
50 Ω

VSWR:
2.0:1 Maximum

Polarization:
Horizontal

Pattern:
Forward Directional

Connector:
N Female

Product Codes

  • Mfr Part No:37P-4
  • EDMO #:37P-4
  • Brand:RAMI
  • Category:Antennas & Couplers
