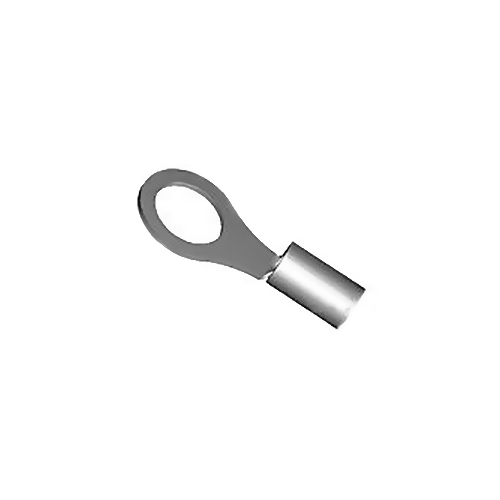

Solistrand Ring Terminal | 1/0 AWG, 1/4 in

RING TERMINAL/Female, not insulated, tin plating, copper material, 1/4 stud, maximum bundle, straight angle. For use with 1/0 gauge wire.

TE CONNECTIVITY

Call For Pricing

In stock

EDMO # 36915

MFR Part # 36915

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Solistrand terminals and splices are designed to terminate solid, stranded, and irregular shaped conductors or any combination of these. During usage Solistrand terminals maintain their superior performance characteristics while providing reliable service in punishing environments.

This Solistrand ring terminal (EDMO# 36915) is for 1/0 AWG wire and a 1/4 inch stud.

Features

Constructed of fine grade, high conductivity copper for optimal electrical performance
Brazed seam increases metal strength around the entire barrel while preventing pinched and stubbed wires
A bell mouth at the barrel entrance makes inserting wires easier to reduce installation time
Meets or exceeds the requirements of SAE AS7928, Type I, Class 1 and 2. Aircraft, Defense and Marine (related) equipment base their performance requirements on AS7928
Rated for up to 170°C
