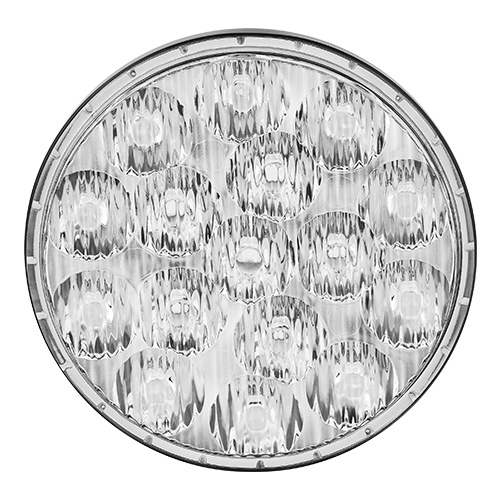

SunSpot 36 75W LED Taxi Light | 14 V
Product Description
The 75-watt SunSpot 36 LED taxi light utilizes a precision Fresnel lens to deliver a broad 20° × 40° beam optimized for taxiing, ground maneuvering, and runway visibility. The beam pattern provides effective surface illumination while maintaining defined light placement for lowspeed operations.
Designed for efficient performance, the 75 watt SunSpot 36 Series delivers consistent beam quality and a clean, daylight-white color temperature while drawing less power than traditional incandescent lamps. Built to withstand the rigors of flight, every SunSpot 36 light mounts directly into standard PAR36 housings for straightforward installation.
This SunSpot 36 75W LED taxi light (EDMO# 36-4519) is a 14-volt unit.
Features
- High-efficiency, low-power LEDs
- Long-life, low maintenance design
- Shock and vibration resistant
- Built-in thermal protection
- UV hardcoated polycarbonate lens
- Black powder coated aluminum heat sink
- AeroLEDs pulse synchronization
Specifications
Weight:
11.2 oz
Dimensions:
4.4 x 4.4 x 2.0 in
Mounting:
Fits standard PAR 36 mounts
Voltage:
9–15 VDC, 14 VDC (Nominal)
Current:
5.4 A @ 14 VDC
Power:
75 W
Peak Candela:
60k (Peak)
Beam Profile:
20º Vertical x 40º Horizontal (@ 10% Peak)
Lifespan:
30,000 hours
Lens Material:
UV-coated polycarbonate
Approvals:
FAA-PMA/STC
Product Codes
- Mfr Part No:01-1030-4519
- EDMO #:36-4519
- Brand:WHELEN ENGINEERING
- Category:Aircraft Lighting
