MS35207-263 Pan Head Machine Screw | 10-32 Thread, 1/2-inch Length, 0.373-inch Phillips Head
Product Description

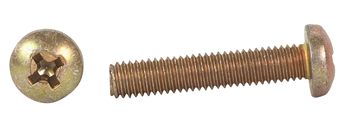

This MS35207 series pan head machine screw (EDMO# 35207263) has 10-32 threads, a 0.373-inch Phillips head, and is 1/2-inch in length. It is also made of cadmium plated steel.
Features
- MS35207 series pan head machine screw
- 60,000 psi minimum tensile strength
- Cadmium plated (QQ-P- 416 Type 2 Class 3)
- Carbon steel (Federal Standard #66)
Specifications
Thread Class:
2a
Thread Direction:
Right-hand
Thread Length:
0.5 in
Fastener Length:
0.5 in
Head Style:
Pan Head
Head Diameter:
0.357 – 0.373 in
Internal Drive Style:
Cross recess type 1
Nominal Thread Diameter:
0.190 in
Thread Quantity Per Inch:
32
Minimum Tensile Strength:
60000 lb/sq. in
Screw Material:
Steel, Cadmium Plated
Thread Series Designator:
UNF
Product Codes
- Mfr Part No:MS35207-263
- EDMO #:35207263
- Brand:BILD INDUSTRIES
- Category:Hardware
