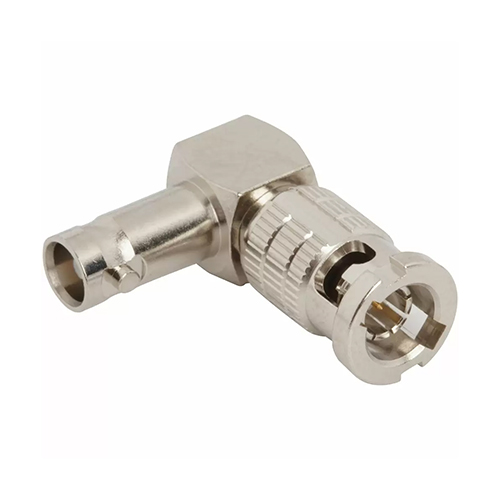

HD-BNC Plug To HD-BNC Jack | Right Angle, 75 Ohm, 12G Optimized


AMPHENOL

CALL FOR PRICING
Available To Order
EDMO#34-111112G
MFR#034-1111-12G

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

This connector (EDMO# 034-1111-12G) facilitates the connection from a HD-BNC Plug to a HD-BNC jack. This right angle plug features a bayonet coupling mechanism and has a nickel-plated brass body construction with a gold-plated phosphor bronze and beryllium copper contact.

Features

  • 75Ω Impedance
  • 18 GHz max. frequency
  • Nickel-plated Body
  • Gold-plated Contact
  • HD-BNC to HD-BNC
  • RoHS (EU) compliant with exemption 6C

Specifications

Connector Type:
HD-BNC plug / HD-BNC jack

Connector Body Style:
Right angle

Maximum Frequency:
18 GHz

Impedance:
75Ω

Contact Material:
Phosphor Bronze and Beryllium Copper

Contact Plating:
Gold Plated

Body Material:
Gold-plated, brass

Insulator Material:
PTFE

Coupling Mechanism:
Bayonet

Temperature:
-40°C to 85°C

Product Codes

  • Mfr Part No:034-1111-12G
  • EDMO #:34-111112G
  • Brand:AMPHENOL
  • Category:Electrical Interconnect
