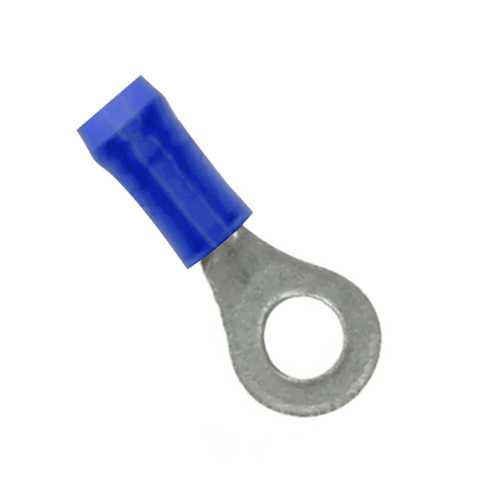

#1/2 PIDG Ring Terminal | 16–14 AWG Wire Size
Product Description
PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.
Features
This PIDG Ring Terminal (EDMO# 328849):
- Fits a #1/2 stud size
- Fits 16 – 14 AWG wire sizes
- Blue nylon insulation material
- Tin-plated, copper conductor
Features:
- Vibration resistant design
- Allows wires to bend freely in any direction
- PIDG terminal meet or exceed SAE AS7928 Type II, Class 1 & 2 requirements
Specifications
Wire size:
16-14 AWG
Wire insulation diameter:
0.170 in. (4.32mm)
Splice material:
Copper
Plating material:
Tin
Color:
Blue
Insulation sleeve material:
Nylon
Product Codes
- Mfr Part No:328849
- EDMO #:328849
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
