PIDG 0.150 mm Nylon End Splice Terminal | 12 – 10 AWG, Yellow
Product Description
PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

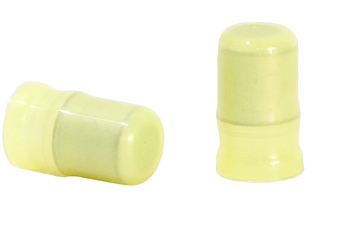

This end splice terminal (EDMO# 324487) has yellow insulation, and used on 12 – 10 AWG wire.
Features
- Yellow nylon insulation material
- Tin-plated copper conductor
- Exceeds requirements of SAE AS7928, Type II, Class 1 and 2
Specifications
Length:
13.08 mm
Contact Material:
tin-plated copper
Insulation:
nylon
Mounting Angle:
straight
Mount Style:
cable mount / free-hanging
Product Type:
end splice terminal / wire cap
Termination Style:
crimp
Product Codes
- Mfr Part No:324487
- EDMO #:324487
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
