Nylon End Splice Terminal | 22 – 16 AWG, Red

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

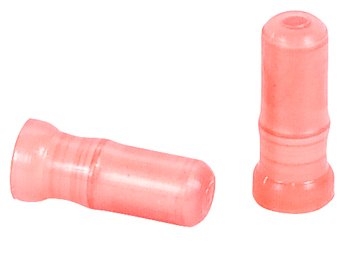

This end splice terminal (EDMO# 324485) has red insulation, and used for 22 – 16 AWG wire.

Specifications

• Length:
  13.08 mm
• Wire Gauge:
  22 – 16 AWG
• Color:
  red
• Contact Material:
  tin-plated copper
• Insulation:
  nylon
• Mounting Angle:
  straight
• Mount Style:
  cable mount / free-hanging
• Terminal Style:
  crimp
• Termination Type:
  wire cap

Product Codes

• Mfr Part No
  324485
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000

Documentation

• 324485 Envelope Drawing
