PIDG #8 Nylon Spade Terminal | 14 AWG, Blue
Product Description
PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

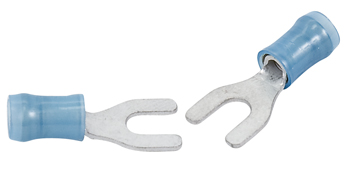

This spade terminal (EDMO# 32059) fits #8 studs, has blue insulation, and used for 14 AWG wire.
Features
- Blue nylon insulation material
- Tin-plated copper conductor
- Exceeds requirements of SAE AS7928, Type II, Class 1 and 2
Specifications
Dimensions:
23.06 x 9.53 mm
Color:
blue
Connector Type:
spade terminal
Contact Material:
tin-plated copper
Insulation:
nylon
Mounting Angle:
straight
Mounting Style:
screw
Stud/Tab Size:
#8
Termination Style:
crimp
Voltage Rating:
300V
Wire Gauge:
14 AWG
Product Codes
- Mfr Part No:32059
- EDMO #:32059
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
