PIDG Knife Disconnect Splice | 22 - 16 AWG, Red

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

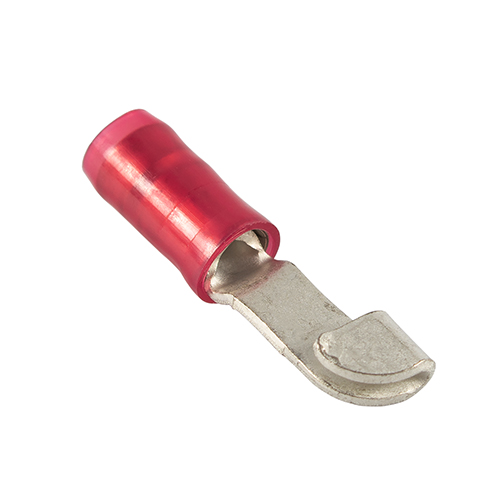

This knife splice (EDMO# 320555) has a red insulation color, and used on 22 – 16 AWG wire.

Specifications

• Dimensions
  : 22.3 x 5.15 mm
• Color:
  red
• Contact Material:
  tin-plated copper
• Insulation:
  nylon
• Product Type:
  knife splice
• Termination Style:
  crimp
• Wire Gauge:
  22 – 16 AWG

Product Codes

• Mfr Part No
  320555
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000
• UL
  UL486A

Documentation

• 320555 Envelope Drawing
