PIDG #8 Nylon Ring Terminal | 22 – 16 AWG, Red

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

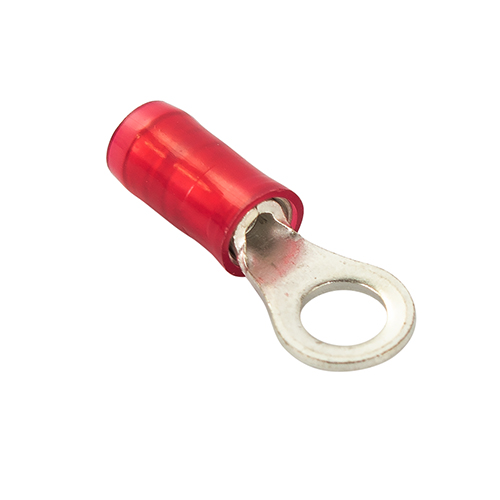

This ring terminal (EDMO# 320554) fits #8 studs, has red insolation, and used for 22 – 16 AWG wire.

Specifications

• Dimensions:
  20.24 x 7.14 mm
• Color:
  red
• Contact Material:
  tin-plate copper
• Insulation:
  nylon
• Mounting Angle:
  straight
• Mounting Style:
  screw
• Product Series:
  PIDG
• Stud/Tab Size:
  #8
• Connector Type:
  ring terminal
• Voltage Rating:
  300V
• Wire Gauge:
  16 AWG

Product Codes

• Mfr Part No
  320554
• CSA
  LR7189
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.90.4000
• UL
  E13288

Documentation

• 320554 Envelope Drawing
