PIDG #8 Nylon Ring Terminal | 22 – 16 AWG, Red

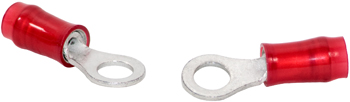

RING TERMINAL/# 8 stud/tab size, female, insulated, red, tin plating, copper material, nylon insulation, 300 VAC. PIDG series. For use with 22-16 gauge wire.

TE CONNECTIVITY

Call For Pricing

In stock

EDMO # 31886

MFR Part # 31886

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

PIDG terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors. These terminals consist of of a nylon or PVC insulated body, plus a metal sleeve which clamps to the wire adding support. The design of the wire barrel resists vibration while allowing the wire to bend in any direction without damaging the insulation or conductor.

This ring terminal (EDMO# 31886) fits #8 studs, has red insolation, and used for 22 – 16 AWG wire.

Features

Red nylon insulation material w/ red stripe
Tin-plated copper conductor
Exceeds requirements of SAE AS7928, Type II, Class 1 and 2

Also Purchased

Specifications

Dimensions:

0.797 x 0.281 in (20.24 x 7.14 mm)
Color:

red
Contact Material:

tin-plated copper
Insulation:

nylon
Mounting Style:

screw
Product Series:

PIDG
Stud/Tab Size:

#8
Connector Type:

ring
Voltage Rating:

300V
Wire Gauge:

22 – 16 AWG

Product Codes

Mfr Part No

31886
CSA

LR7189
ECCN

EAR99
SCHEDULE B CODE

8536.90.4000
UL

486A

Documentation

31886 Envelop Drawing
